Aksesoris Untuk Mesin uji Tekan


Category: . Tag: .
Description

Brand : Controls – Italia

Standard :

Deskripsi Umum :

Mesin Uji Tekan Beton atau semen yang kami supplai mempunyai jarak ruang vertikal yang cukup tinggi, desain tersebut mempunyai keuntungan bagi pengguna untuk melakukan percobaan tekan lainnya dengan standard yang bervariasi seperti uji tekan pada sampel Silinder maupun kubus, lalu dapat juga melakukan uji Belah pada sampel silinder, flexure (lentur) pada balok beton, atau juga uji Mortar pada berbagai macam sampel.

Pada Halaman ini, kami deskripsikan aksesoris yang dapat melakukan bervariasi uji tersebut, biasanya pada saat klien membeli mesin uji tekan beton, kami masukan item aksesoris untuk uji tekan silinder dan kubus, sisanya dapat langsung dilihat atau menghubungi kami sesuai kebutuhan yang diinginkan.

aksesoris tersebut antara lain :

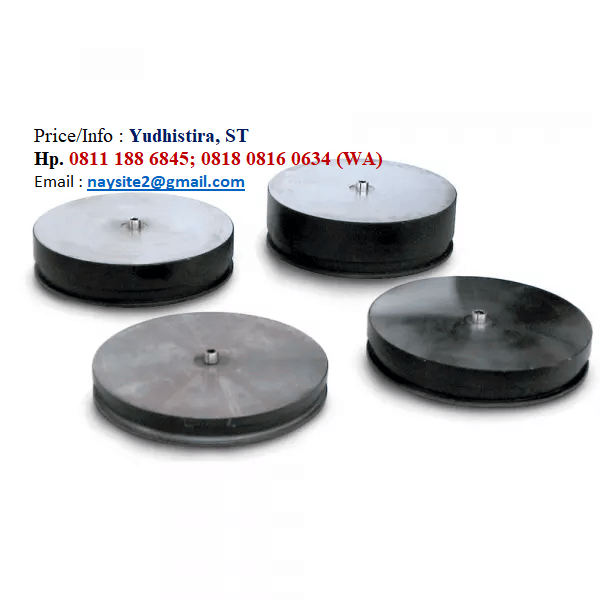

  1. Distance pieces to adjust the vertical daylight :

50-C9080
Distance piece dia. 200×30 mm. Weight 7,3 kg
50-C9080/P*
Distance piece dia. 200×30 mm with threaded centering pin. Weight 7,3 kg

50-C9082
Distance piece dia. 200×50 mm. Weight 12,3 kg
50-C9082/P*
Distance piece dia. 200×50 mm with threaded centering pin. Weight 12,3 kg

50-C9083
Distance piece dia. 200×68 mm. Weight 16,7 kg
50-C9083/P*
Distance piece dia. 200×68 mm with threaded centering pin. Weight 16,7 kg

50-C9084
Distance piece dia. 96×158 mm. Weight 9 kg

50-C9086
Distance piece dia. 200×100 mm. Weight 25 kg
50-C9086/P*
Distance piece dia. 200×100 mm with threaded centering pin. Weight 25 kg

50-C9087
Distance piece dia. 96x130mm. Weight 8 kg

Distance pieces for cement compression testers
65-L1000/20
Distance piece dia. 165×20 mm. Weight 3,2 kg

65-L1000/30
Distance piece dia. 165×30 mm. Weight 4,7 kg
65-L1000/30P**
Distance piece dia. 165×30 mm with threaded centering pin. Weight 4,7 kg

65-L1000/40
Distance piece dia. 165×40 mm. Weight 6,4 kg
65-L1000/40P**
Distance piece dia. 165×40 mm with threaded centering pin. Weight 6,4 kg

65-L1000/68
Distance piece dia. 165×68 mm. Weight 10,5 kg
65-L1000/68P**
Distance piece dia. 165×68 mm with threaded centering pin. Weight 10,5 kg

* to be order along with item 50-Q0050/P6
** to be order along with item 50-L1000/P

2. Splitting tensile test devices

Standard : EN 1338 | EN 12390-6 | ASTM C496

Two column steel frame with self-centering base specimen holder and upper load beam suspended with springs for easy adjustment of the specimen. The devices can be easily placed on lower platen of the compression tester using suitable distance pieces to adjust the vertical daylight. The device have to be completed with the packing strips to be inserted between the specimen and the load beams.

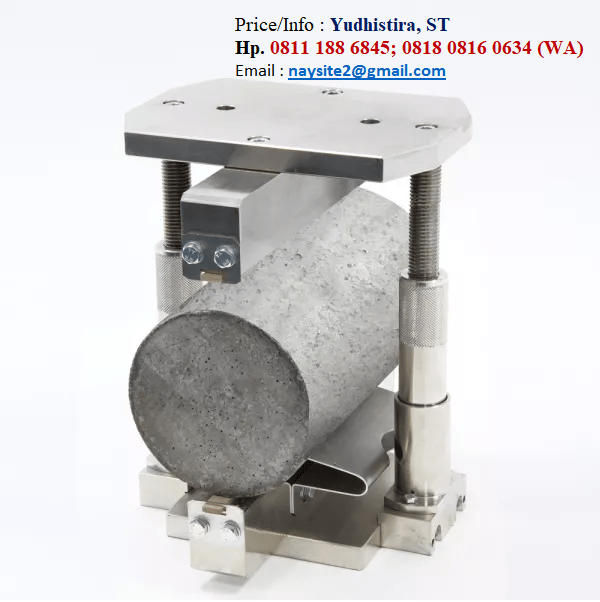

Model 50-C9000/B is used for splitting tensile tests on cylindrical specimens.

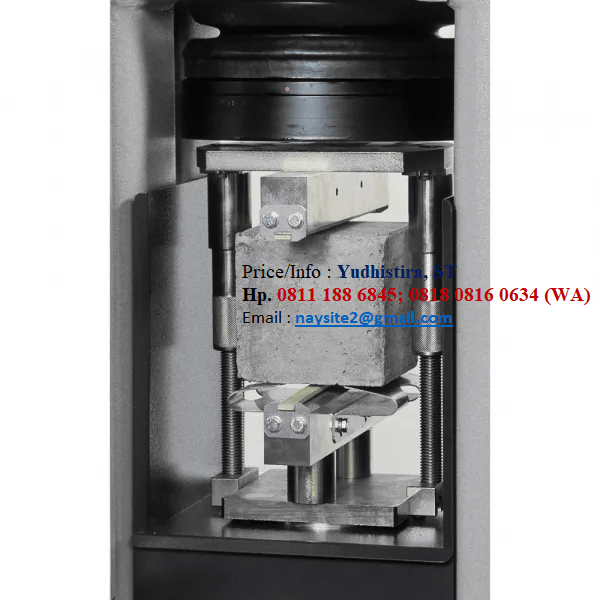

Model 50-C9070/B is used for splitting tensile tests on concrete block pavers and concrete cubes.

For both models max total height is 370 mm (14.6″). The 370 mm (14.6″) vertical daylight can easily obtained removing the lower platen of the compression tester.

  • Max vertical daylight: 210 mm (8.3″). Total height: 370 mm (14.6″)
  • Min vertical daylight: 90 mm (3.5″). Total height: 250 mm (9.8″)
  • Max horizontal daylight: 160 mm (6.3″)
  • Total width: 255 mm (10″)
  • Max travel: 45 mm (1.8″)
  • Bearers length : 350 mm (13.8″)

Technical Specifications :

Model

50-C9000/B

50-C9070/B

50-C9000/A

Max. height1 370 mm (14.6″)1 370 mm (14.6″)1

388 mm (15.3″)

Overall dimensions, width/length

255/345
10″/13.6″

255/345
10″/13.6″

346/525
13.6″/20.7″

Usable with

All compr. Testers

All compr. testers

With 4000/5000 kN compression testers only

Weight approx. kg

28 kg (61.7 lbs)

28 kg (61.7 lbs)

50 kg (110.2 lbs)

  1. When testing 150 mm (6″) and 160 mm (6.3″) dia. specimens, the vertical height required is 325 mm (12.8″).
    When testing 100mm (4″) dia. specimens, the vertical height required is 275 mm (10.8″).
    To adjust remaining vertical dayligth See Distance pieces to adjust the vertical daylight

ordering info :

50-C9000/B
Splitting tensile test device for cylinders up to dia. 160×320 mm (6.3″x12.6″). Conforming to EN 12390-6 and ASTM C496

50-C9000/A
Splitting tensile test device for cylinders dia. 250×500 mm (9.8″x19.7″). Conforming to EN 12390-6

50-C9070/B
Splitting tensile test device for concrete block pavers and concrete cubes. Conforming to EN 1338 and EN 12390-6

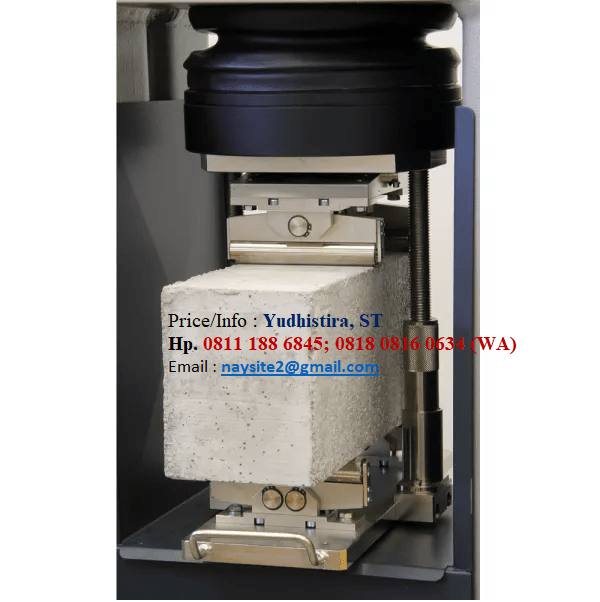

3. Flexural test device for concrete beams

Standard : EN 12390-5 | ASTM C78 | ASTM C293 | AASHTO T97

Double upper bearer for third point test and center. Total height: 370 mm when adjusted for 150 mm beams and 320 mm for 100 mm beams. The 370 mm vertical daylight can easily obtained removing the lower platen of the compression tester.

  • Max vertical daylight: 160mm (total height:370mm)
  • Min vertical daylight: 110mm (total height:320mm)
  • Max travel: 45mm
  • Rollers: dia.26mm x 160mm
  • Distance between upper rollers: 100mm or 150mm
  • Distance between lower rollers: 300mm or 450mm

Weight approx.: 33 kg
Total width: 260mm

Ordering Information :

50-C9010/B
Flexural test device for concrete beams 100x100x400/500 and 150x150x600/750 mm

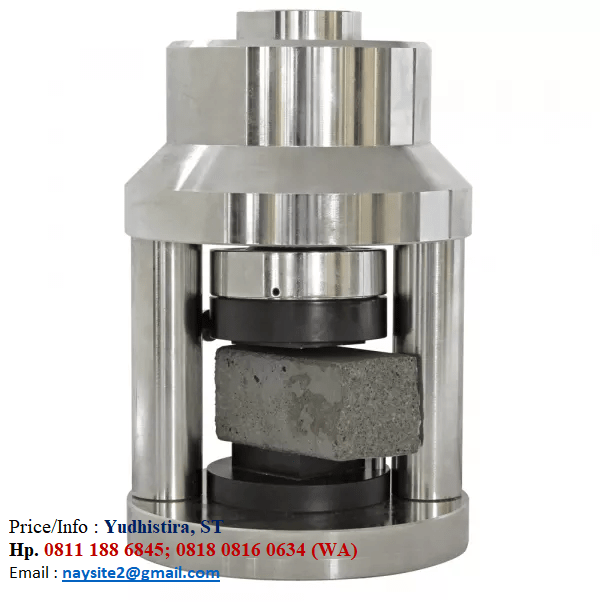

4. Compression devices for cement and mortars

Robust frame fitted with an upper platen with spherical seat that moves vertically sustained by a spring. The apparatus can be placed and centered directly on the lower machine platen. The 50-C9030 and 50-C9032/H, conforming to EN 196 are designed to test portions of 40x40x160 prisms broken in flexure, while the 50-C9032, conforming to ASTM C109, fitted with compression platens 75 mm dia., and a vertical daylight of 53 mm is used to test 50mm/2” cubes and other little samples as, for example, microcores.

The total height of both 50-C9030 and 50-C9032 apparatus is 195 mm while it’s 225mm for model 50-C9030/H and 50-C9032/H.
Vertical clearance of the compression machine has to be adjusted using suitable distance pieces accordingly. See accessories
Weight approx.: 8 kg

Ordering Information :

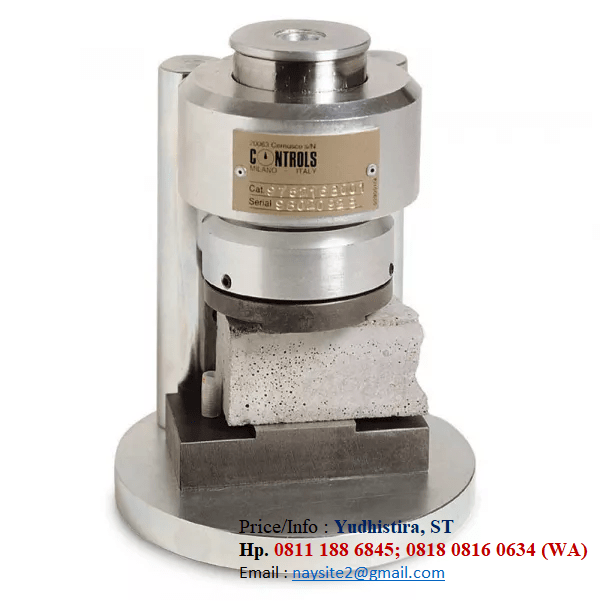

50-C9030
Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-.
Total height 195mm.

50-C9030/H
Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-1. High stiffness model.
Total height 225mm.

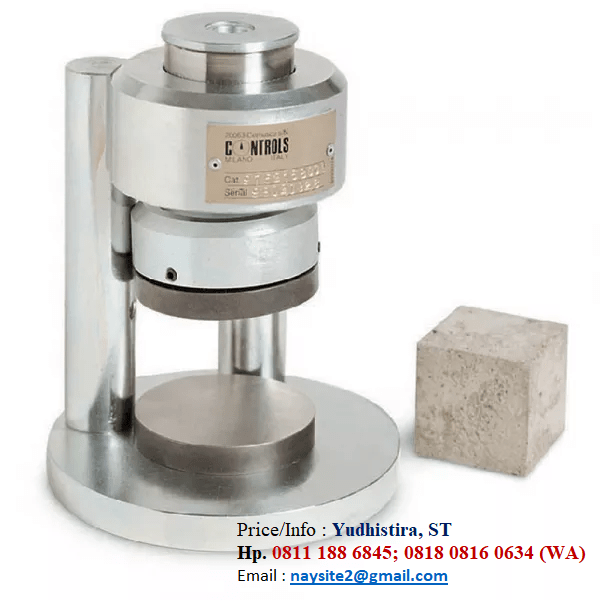

50-C9032
Compression device to test 50 mm and 2” mortar cubes to ASTM C109
Total height 195mm.

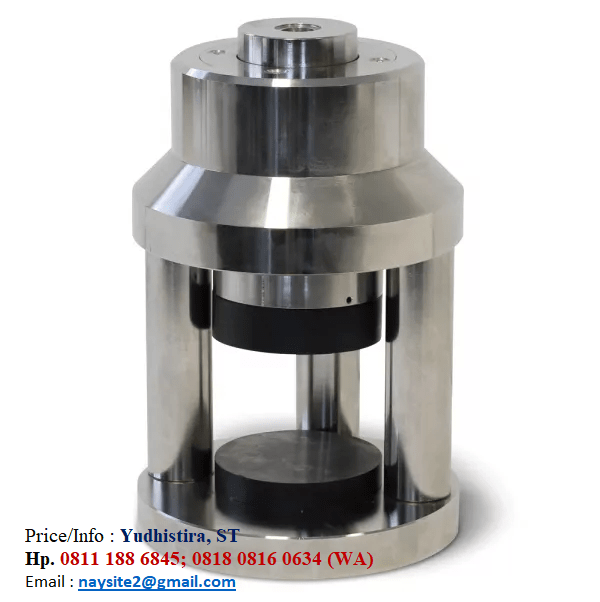

50-C9032/H
Compression device to test 50mm (2″) cubes to ASTM C109. High stiffness model.
Total height 225mm.

50-C0050/HRD5
Supply of 50-C9030 compression device with traceable certificate of  platen hardness.



Price : Call For Info
