Alat kendali mesin uji tekan dan lentur beton dan semen


Category: . Tags: , , , , .
Description

Brand : Controls – Italia

DIGIMAX 3, PILOT and AUTOMAX PCS (nama sistem – mesin), juga tersedia dalam bentuk terpisah khusus kendali saja(stand alone), pusat kendali ini bisa dijadikan pilihan bagi anda yang sudah mempunyai mesin uji tekan namun mengalami kerusakan pada bagian motor hidrolik atau kerusakan alat baca, sehingga menghemat biaya pembelian dengan membelinya tanpa mengikutsertakan frame – nya. Atau bisa juga digunakan untuk memperbaharui sistem pada mesin(alat baca, software, pompa hidraulik) untuk mendapat hasil yang lebih maksimal.

  • Perkiraan Dimensi : 1292 x 350 x 450 mm
  • Perkiraan Berat : 80 kg

Deskripsi 3 sistem tersebut :

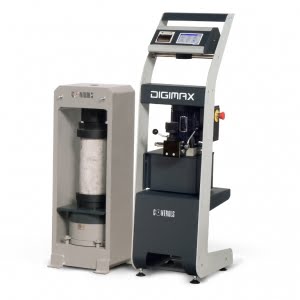

1. Digimax SMART line, semi automatic digital tester :

main features :

  • Accurate load rate application
  • High test throughput: up to 40 compression tests per hour
  • Advanced digital system with touch-screen display unit
  • Connectable to a second frame (as optional)
  • Compatible with the Data Manager software 82-SW/DM (new release compatible with SMART Line units)
  • Can be connected to any make of hydraulic operated testing frame
  • Recording facility of up to 10 test profiles for each channel allowing quick and easy test start

The Digimax  Control system features:

POWER PUMP

  • Dual stage pump: centrifugal low pressure high delivery for fast approach and automatic switch to radial multi-piston high pressure for loading
  • 720 W AC motor
  • Max working pressure 650 bar
  • Second  frame connection as optional

PROPORTIONAL VALVE, HAND CONTROL

  • The self compensated system maintain the preset load rate all over the test requiring just occasional operator intervention on the valve knob

HARDWARE

  • 132000 points high resolution/stability analogical channels
  • Touch screen graphic display 240×128 pixel, icons driven showing figures and diagrams
  • Large storing capacity on USB pen drive of test data downloadable to PC
  • Ethernet port for communication with PC
  • Integrated graphic printer as optional

FIRMWARE

  • Simultaneous display of load, specific load, actual load rate and load/time graph
  • LAN connection to PC for transmission, in real time, during loading, of load and time values
  • Easy firmware update through Ethernet port
  • Memory management with display of tests stored in USB pen, download of data to internal printer or PC, delete single test or reset entire memory
  • Multi-coefficient calibration procedure with automatic storage of data without manual editing (using a suitable load cell and readout unit)
  • Recording facility of up to 10 test procedures for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, standard in use, and other general information. Each one of the recorded test procedures can be activated by default to save time.
  • Compatible with the Data Manager software 82-SW/DM, new release tailored on the requirements of laboratories for construction materials, for real time data acquisition, display and management
  • 12 languages, Unit selection, etc.
  • Screen saver

PHISICAL SPECIFICATIONS

  • Overall dimensions: (hxlxd) 1292x350x450 mm
  • Weight approx.: 80 kg

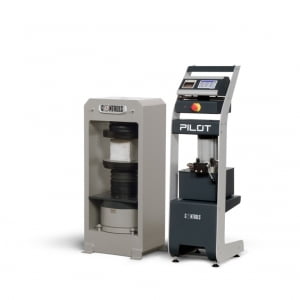

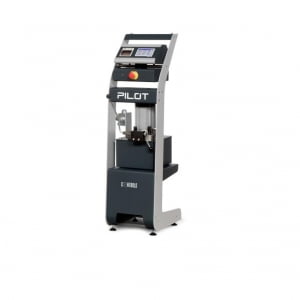

2. Pilot SMART line

Main Features :

  • Accurate load rate control for quality testing
    An accurate and constant load rate application without large fluctuations (typically 10% of the pre-set value) not only guarantees testing to Standards and reliability of results, but also allows the test to be performed by operators who do not have experience.
  • The advantage of the test automation.
    The test cycle with closed loop digital feedback is automatically performed by simply pressing the start button. The load-time graph and the actual load rate are displayed in real time during the test. Correct test execution according to the selected Standard, is continuously and automatically controlled.
  • Energy Saving test system
    “ES technology” features accurate oil flow control, conforming to Standards, resulting in no oil dispersion, silent operation, cold oil temperature and low energy consumption  (save over 30% compared to traditional systems).
  • High flexibility: can control testing frames from 100 to 5000 kN
    AUTOMAX  can fit all our compression and flexural testing frames performing accurate and reliable tests also for low strength results. It can also be used for other make compatible hydraulic compression and flexural frames
  • Second frame control option
    PILOT can be upgraded, as option, with distributor block for the non simultaneous control of a second  frame as, for example, Flexural testing frame or Cement compression frame. An ideal and economical solution to the automation of the most important tests on concrete and cement specimens
  • Recording facility of up to 10 test profiles for each channel allowing quick and easy test start

Technical Specifications :

The PILOT  Control system features:
HYDRAULIC GROUP

  • Dual stage pump: centrifugal low pressure high delivery for fast approach and automatic switch to radial multi-piston high pressure for loading
  • DC motor, 720 W, 50-60 Hz
  • Max working pressure 650 bar
  • Second  frame connection as optional
  • Energy Saving technology to reduce the power consumption and silent operation

HARDWARE

  • 132000 points high resolution/stability analogical channels
  • Touch screen graphic display 240×128 pixel, icons driven showing figures and diagrams
  • Large storing capacity on USB pen drive of test data downloadable to PC
  • Ethernet port for communication with PC
  • Integrated graphic printer as optional

FIRMWARE

  • Simultaneous display of load, specific load, actual load rate and load/time graph
  • LAN connection to PC for transmission, in real time, during loading, of load and time values
  • Easy firmware update through Ethernet port
  • Memory management with display of stored tests, download of data to internal printer or PC, delete single test or reset entire memory
  • Automatic multi-coefficient calibration procedure with automatic storage of data without manual editing (using a suitable load cell and readout unit)
  • Recording facility of up to 10 test procedures for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, standard in use, and other general information. Each one of the recorded test procedures can be activated by default to save time.
  • Compatible with the Data Manager software 82-SW/DM, new release tailored on the requirements of laboratories for construction materials, for real time data acquisition, display and management
  • 12 languages, Unit selection, etc.
  • Screen saver

PHISICAL SPECIFICATIONS

  • Overall dimensions: (hxlxd) 1292x350x450 mm
  • Weight approx.: 80 kg

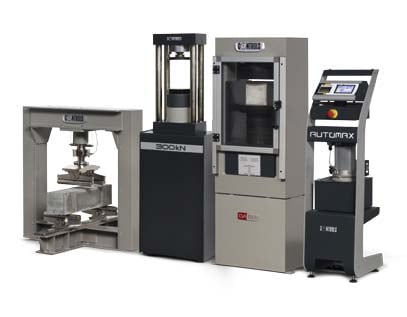

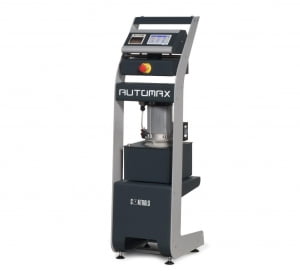

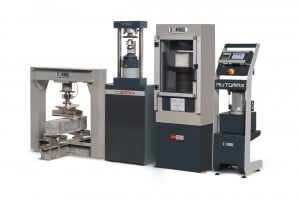

3. Automax SMART line, fully automatic tester

Main Features :

  • PC control option
    When connected to PC, the system is fully computerized and controlled by the Data Manager software
  • Accurate load rate control for quality testing
    An accurate and constant load rate application without large fluctuations (typically 10% of the pre-set value) not only guarantees testing to Standards and reliability of results, but also allows the test to be performed by operators who do not have experience.
  • The advantage of the test automation.
    The test cycle with closed loop digital feedback is automatically performed by simply pressing the start button. The load-time graph and the actual load rate are displayed in real time during the test. Correct test execution according to the selected Standard, is continuously and automatically controlled.
  • Energy Saving test system
    “ES technology” features accurate oil flow control, conforming to Standards, resulting in no oil dispersion, silent operation, cold oil temperature and low energy consumption  (save over 30% compared to traditional systems).
  • High flexibility: can control testing frames from 100 to 5000 kN
    AUTOMAX  can fit all our compression and flexural testing frames performing accurate and reliable tests also for low strength results. It can also be used for other make compatible hydraulic compression and flexural frames
  • Third frame control option
    AUTOMAX can be upgraded, as option, with distributor block for the non simultaneous control of a third frame as, for example, Flexural testing frame and Cement compression frame. Active frame selection is made via the display/software.An ideal and economical solution to the automation of the most important tests on concrete and cement specimens.
  • Recording facility of up to 10 test profiles for each channel allowing quick and easy test start

TEchnical Specifications :

The AUTOMAX  Control system features:

HYDRAULIC GROUP

  • Dual stage pump: centrifugal low pressure high delivery for fast approach and automatic switch to radial multi-piston high pressure for loading
  • DC motor, 720 W, 50-60 Hz
  • Max working pressure 650 bar
  • Third  frame connection option (non contemporaneous use only), Active frame selection by software.
  • Energy Saving technology to reduce the power consumption and silent operation

HARDWARE

  • 132000 points high resolution/stability analogical channels
  • Touch screen graphic display 240×128 pixel, icons driven showing figures and diagrams
  • Large storing capacity on USB pen drive of test data downloadable to PC
  • Ethernet port for communication with PC
  • Integrated graphic printer as optional

FIRMWARE

  • Simultaneous display of load, specific load, actual load rate and load/time graph
  • LAN connection to PC for transmission, in real time, during loading, of load and time values
  • Easy firmware update through Ethernet port
  • Memory management with display of stored tests, download of data to internal printer or PC, delete single test or reset entire memory
  • Automatic multi-coefficient calibration procedure with automatic storage of data without manual editing (using a suitable load cell and readout unit
  • Multi-coefficient calibration procedure with automatic storage of data (requires external reference load cell and readout unit)
  • Recording facility of up to 10 test procedures for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, standard in use, and other general information. Each one of the recorded test procedures can be activated by default to save time.
  • Compatible with the Data Manager software 82-SW/DM, new release tailored on the requirements of laboratories for construction materials, for real time data acquisition, display and management
  • 12 languages, Unit selection, etc.
  • Screen saver

PHISICAL SPECIFICATIONS

  • Overall dimensions: (hxlxd) 1292x350x450 mm
  • Weight approx.: 80 kg



Hubungi kami Untuk Informasi Harga dan detail penggunaan
