Alat Uji Sifat Reologi Aspal dengan Alat Reometer Geser Dinamis (RGD) – DSR
Rp234.00

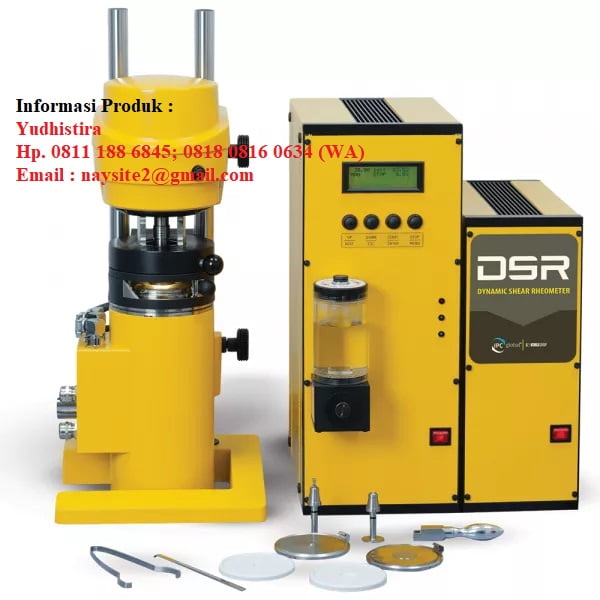

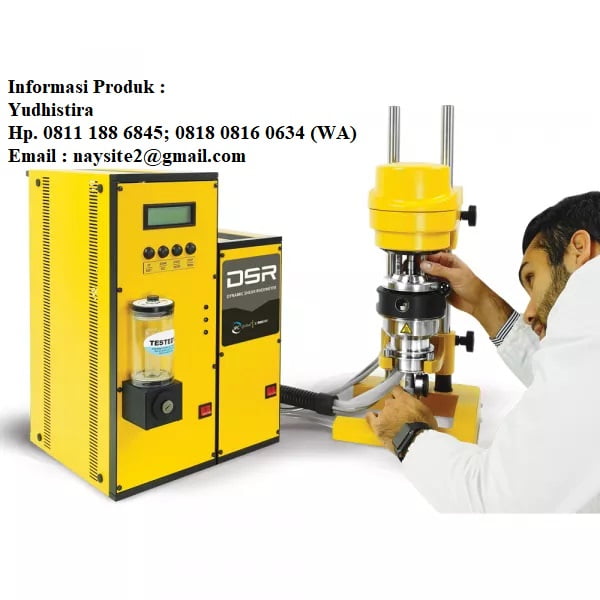

Dynamic Shear Rheometer – DSR
Merek/Supplai Dari : Controls – Italy
Standard : AASHTO M320, ASTM D4402, AASHTO T316, EN 13302, AASHTO T315, ASTM D7175, ASTM D7405, EN 14770
Model : 81-PV6102; 81-PV6202(Advance Model With Automatic GAP)
ASTM D7175 adalah metode uji standar untuk menentukan sifat reologi dari pengikat aspal menggunakan Dynamic Shear Rheometer (DSR).
Berikut adalah poin-poin utama dari standar ini:
- Tujuan: Mengukur modulus geser kompleks dan sudut fase dari pengikat aspal untuk menilai ketahanan terhadap deformasi.
- Metode: Pengujian dilakukan dalam geseran dinamis (osilasi) dengan geometri pelat paralel.
- Aplikasi: Berlaku untuk pengikat aspal yang belum mengalami penuaan, yang telah dikondisikan, atau yang telah dipulihkan dari campuran aspal atau emulsi.
- Batasan: Hanya berlaku untuk pengikat aspal dengan partikel berukuran kurang dari 250 μm.
- Penggunaan: Hasil pengujian digunakan untuk menghitung kriteria kinerja sesuai dengan Spesifikasi ASTM D6373 atau D8239.
Features :

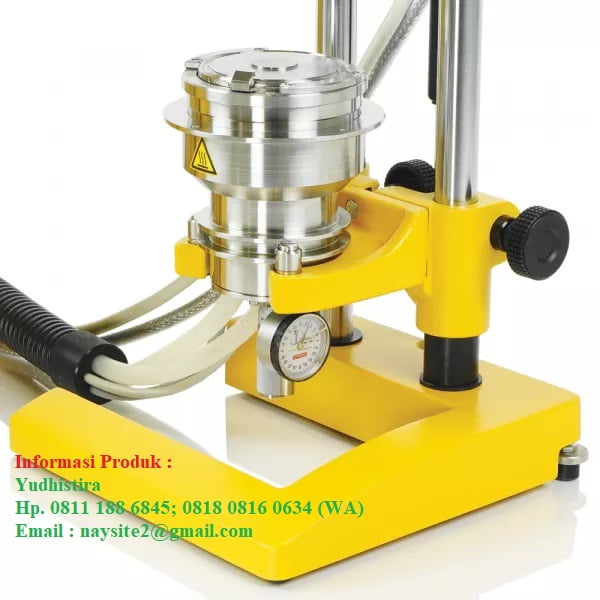

Dynamic Shear Rheometers (DSR) performs the critical rheological characterization analysis required for SuperPave Performance Grade (PG) classification of asphalt binders. The DSR test uses a thin asphalt binder sample sandwiched between two circular plates. The lower plate is fixed while the upper plate oscillates back and forth across the sample to create a shearing action.
The 81-PV6102 and 81-PV6202 DSR models perform SuperPave performance grading according to AASHTO T315 and ASTM D7175, Viscosity determination of asphalt binder in according to AASHTO T316 and ASTM D4402 and determine Multi Stress Creep Recovery (MSCR) according to AASHTO T350 and ASTM D7405.
- Performance Grade (PG) determination test.
- Determination of deformation properties of bitumen with Multiple Stress Creep Recovery test (MSCR – Test).
- Determination of complex shear modulus G* and phase angle δ of road bitumen at different temperatures.
Affordable, robust and accurate, the new DSR offers the following benefits:
- Great value — ideal for asphalt and bitumen QC laboratories at very competitive price
- Reliable and long lasting — sturdy stainless steel construction
- Simple to use with intuitive software guiding the user through the various test phases
- Fully compliant, exceeding AASHTO, ASTM and EN Standards.
- Robust with excellent temperature stability and accuracy
DSR tests are conducted on unaged, RTFO aged and PAV aged asphalt binder samples. The binder behavior under various temperature and loading conditions is analyzed to predict its performance at anticipated climatic conditions.
Technical Specifications :
| RHEOMETER | 81-PV6102 | 81-PV6202 |
| Torque Range | 0,1 to 150 mNm | 0,1 to 150 mNm |
| Torque resolution | 0,001 mNm | 0,001 mNm |
| Speed Range | 0 to 2000 rpm | 0 to 2000 rpm |
| Speed Resolution | 0,015 rpm | 0,015 rpm |
| Viscosity Range, RN general | 1 to 1 x 1010 mPas | 1 to 1 x 1010 mPas |
| Viscosity Range, plate P3 | 1 x 102 to 1 x 108 mPas | 1 x 102 to 1 x 108 mPas |
| Viscosity Range, plate P4 | 5 x 103 to 1 x 1010 mPas | 5 x 103 to 1 x 1010 mPas |
| Complex Shear Modulus, plate P3 | 0,1 to 2 x 104 kPa | 0,1 to 2 x 104 kPa |
| Complex Shear Modulus, plate P4 | 20 to 4 x 106 kPa | 20 to 4 x 106 kPa |
| Phase Angle Range | 0 to 90° | 0 to 90° |
| Frequency | 0,001 to 100 Hz | 0,001 to 100 Hz |
| Normal Force Range | – | -30 to 30 N |
| Normal Force Resolution | – | 0,01 N |
| Automatic Gap Setting | No | Yes |
| Gap Resolution | – | 1 μm |
| TEMPERATURE CONTROL UNIT | ||
| Maximum Temperature | 150°C | 180°C |
| Minimum Temperature | -10°C | -15°C |
| Temperature Accuracy | ≤ 0,1 K Range 5°C to 90°C |
≤ 0,1 K Range 5°C to 90°C |
| Interface | USB 2.0 | USB 2.0 |

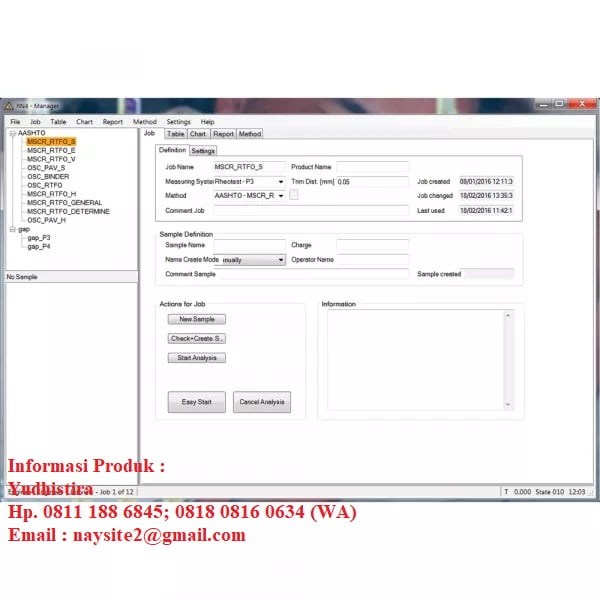

SOFTWARE MANAGER
- Prepared jobs for automatic and fast execution of all bitumen tests
- Automated evaluation and analysis of measuring results in accordance with AASHTO with estimation of Performance Grade
- Different test types for original binders, RTFO and PAV
- Grade Determination and PASS/FAIL conditions
- Bitumen Wizard
Ordering information
81-PV6102: DSR Dynamic Shear Rheometer. 110-220 V, 50-60 Hz, 1 ph.
81-PV6202: DSR Dynamic Shear Rheometer with automatic gap setting. 110-220 V, 50-60 Hz, 1 ph.
Info/Price : Yudhistira, ST
Hp. 0811 188 6845; 0818 0816 0634 (WA)
Email : naysite2@gmail.com
