Alat ukur Curah Hujan TB3 TB4
Alat ukur Curah Hujan
Merk/Di suplai dari : Hyquest – Australia
Kode Barang : TB4
Benefits :
- Long-term stable calibration
- Accuracy not affected by rainfall intensity
- Minimal maintenance required
- Robust design for all environments
- Expandability: Optional autonomous real-time rain monitoring and reporting system RainTrak Undercover with in-built telemetry and logging
Description:

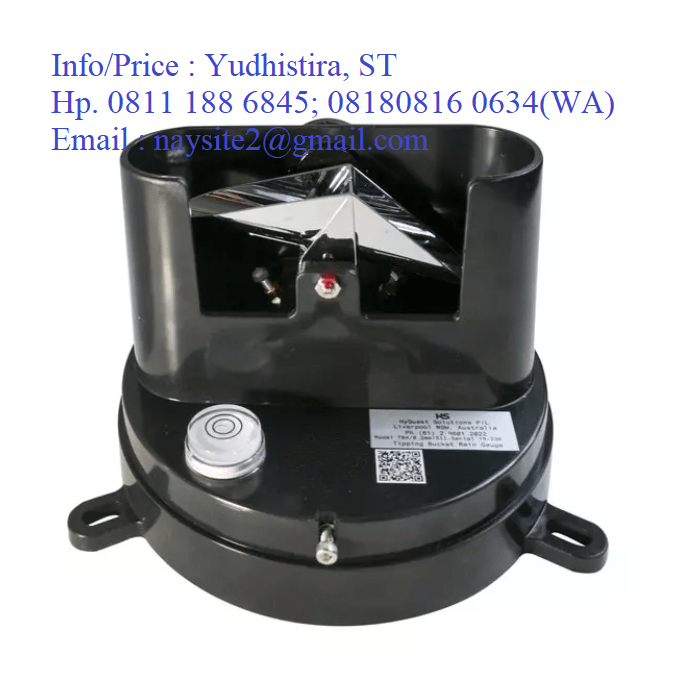

HyQuest Solutions’ TB4 Series II is a high-quality tipping bucket rain gauge for measuring rainfall in urban and rural locations. Due to the integrated syphon, the gauge delivers high levels of accuracy across a broad range of rainfall intensities.
The tried and proven design of the TB4 Series II ensures long-term, accurate and repeatable results. It is manufactured from high quality, durable materials ensuring long-term stability in the harshest of environments. It consists of a robust powder-coated aluminium enclosure, a UV-resistant ASA polymer base, a teflon bucket, and stainless steel fasteners and finger filter.
| Resolution | 0.1 mm | 0.2 mm, 0.5 mm, 0.01 inch | 1.0 mm |
| Catch diameter | 282.84 mm | 200 mm | |
| Bucket | Teflon-impregnated ASA plastic UV-stabilized or synthetic ceramic-coated brass | Synthetic ceramic-coated brass | |
| Pivot/Bucket Mechanism | Machined, robust stainless steel axle resting on corrosion-free sapphire pivots | ||
| Enclosure and base | Anodized, powder-coated aluminium | ||
| Accuracy |
|
||
| Range | 0-700 mm/h (maximum intensity: 700 mm/h) | ||
| Operating Temperature | 4 to 70 °C | ||
| Operating Humidity | 0 to 100 % | ||
| Dimensions and Mass | Ø 282.84 mm x H 410 mm 2.7 kg |
Ø 200 mm x H 330 mm 2.2 kg |
|
Info/Price : Yudhistira, ST
Hp. 0811 188 6845; 08180816 0634(WA)
Email : naysite2@gmail.com
