Augers

Brand : Controls – Italia

Standard : ASTM D420 | ASTM D1452 | AASHTO T86 | AASHTO T202

General Descriptions :

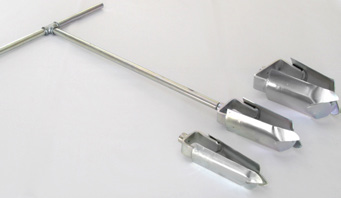

Augers are used for general exploration in soil investigation to obtain samples that are representative of each layer of material. Made of special plated steel, they have a ‘T’ handle with a 1 m shaft which has to be ordered separately. See accessories, code 16-T0005/1.

Kode Barang dan spesifikasi singkat :

16-T0005/A
Hand auger head, 80 mm diameter. Weight 2 kg (approx.).
16-T0006/A
Hand auger head, 100 mm diameter. Weight 2.5 kg (approx.).
16-T0007/A
Hand auger head, 150 mm diameter. Weight 3 kg (approx.).
16-T0008/A
Spiral soil auger head, 40 mm diameter. Weight 3 kg (approx.).
16-T0008/B
Dutch soil auger head, Edelman model, 70 mm diameter, for soft fine soils. Weight 2 kg (approx.).
16-T0008/C
Gravel auger head,150 mm diameter. Weight 1.3 kg (approx.).
16-T0010/6
Stainless steel sample tube, 38 x 230 mm (diameter x length). Weight 0.3 kg (approx.).

Accessories :
16-T0005/1
‘T’ handle with 1 m shaft.
16-T0005/2
Shaft extension rod, 1 m long.
16-T0005/3
Chisel, 300 mm long.
