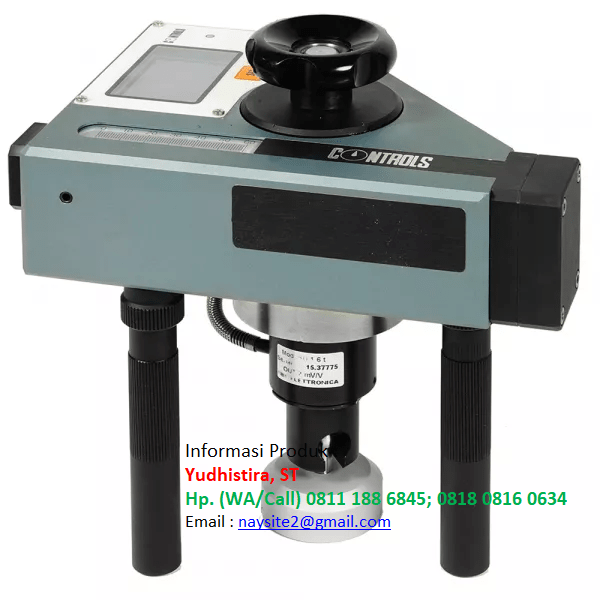

Automatic motorized Pull-Off bond strength tester 58-C0215/AUTO

Automatic motorized Pull-Off bond strength tester

Brand/Supplied From : Controls – Italia

Kode Barang : 58-C0215/AUTO

Standard : EN 1015-12, EN 1348, EN 1542, EN 13963, EN 14496, ISO 13007-2, ISO 4624, ASTM D4541, ASTM C1583, ASTM D7522, ASTM D7234

Main Features :

• Ultra-compact and portable equipment ideal for use in and off site
• Motorized in-built hydraulic actuator
• High resolution graphic display 128×80 pixels and 5 keys membrane keyboard
• PID closed-loop control of the load rate
• Graphic display of actual load, load rate, peak value, strength
• Battery operated: internal rechargeable LiPo type battery 7.4 V, 2200 mAh.
• Dial Indicator of ram position allowing a quick estimation of the brittle properties of the test sample
• Supplied complete with traceable calibration certificate

General Description :

This apparatus is mainly used to evaluate the bond strength of two layers of concrete/mortar or the adhesive strength of surface coatings on its support (e.g. cement plaster, lime, wall plaster etc.).

It is fitted with a high resolution load cell and houses a built-in motorized hydraulic actuator automatically controlled by the advanced electronics and closed loop algorithms. The 16 kN loading capacity, the high resolution load cell and the great stability of the electronics, assure a wide working range ideal for a vast number of materials and applications.

The ultra-compact shape and the lightweight feature make this instrument particularly suitable not only for laboratory use but also for uneasy on site applications such as large walls and ceilings.
It is supplied complete with: aluminium test discs 20 and 50 mm dia., screw bolt, traceable calibration certificate and carrying case.

A wide range of accessories, such as adhesive compound, disks with various shape and dimensions, drill bits are also available.

Technical Specification :

• Max. load capacity: 16 kN
• Load measurement with high accuracy strain gauge load cell
• Effective resolution: +/- 262000 divisions, corresponding to to 0,0001 kN (0.1N)
• Working range: 0.16 kN to 16 kN
• Accuracy: Class 1 starting from 1 % of the full scale
• High resolution graphic display 128×80 pixels and 5 keys membrane keyboard
• Battery operated: internal rechargeable LiPo type battery 7.4 V, 2200 mAh. External power adaptor 110-230 V, 50-60 Hz, 1 ph.
• Serial port RS232 for PC connection
• Data downloading to PC with D-Terminal software (82-Q0800/TRM included)
• Graphic display of actual load, load rate, peak value, strength
• PID closed-loop control of the load rate
• Tester dimensions (lxdxh): 220x150x240 mm approx.
• Over all dimensions: 340x240x250 mm approx.
• Weight (tester only): 4 kg
• Overall weight: 5.7 kg

Ordering Information :

58-C0215/AUTO
Automatic motorized Pull-Off / Bond strength tester. 16 kN cap. Battery operated. Complete with AC adapter.
110-240V, 50-60 Hz, 1ph

Accessories :

Bits and die
58-C0215/1
Drill bit  with centering point to obtain 50 mm dia. test surface
58-C0215/2
Drill bit  with centering point to obtain 20 mm dia. test surface
58-C0215/12
Metal ring (dinking die), 50 mm int. dia, 25 mm high,  for fresh plaster, to EN 1015-12.

Test discs and plate
58-C0215/4
Aluminium square plate 50 mm  x 50 mm to EN 1348
58-C0215/5
Aluminium test disc 50 mm dia. x 20 mm thick
58-C0215/8
Aluminium test disc 20 mm dia. x 20 mm thick
58-C0215/3
Stainless steel test disc 50 mm dia. x 20 mm thick to EN 1015-12

Adhesive
58-C0215/13
Adhesive, bicomponent: 2×15 ml binder and 2×15 ml hardener (4 vials)

Serial cable
58-C0215/T2
Serial cable for PC connection. Requires a PC with RS232 serial port or RS232/USB adaptor (see our model 82-Q0800/3)
