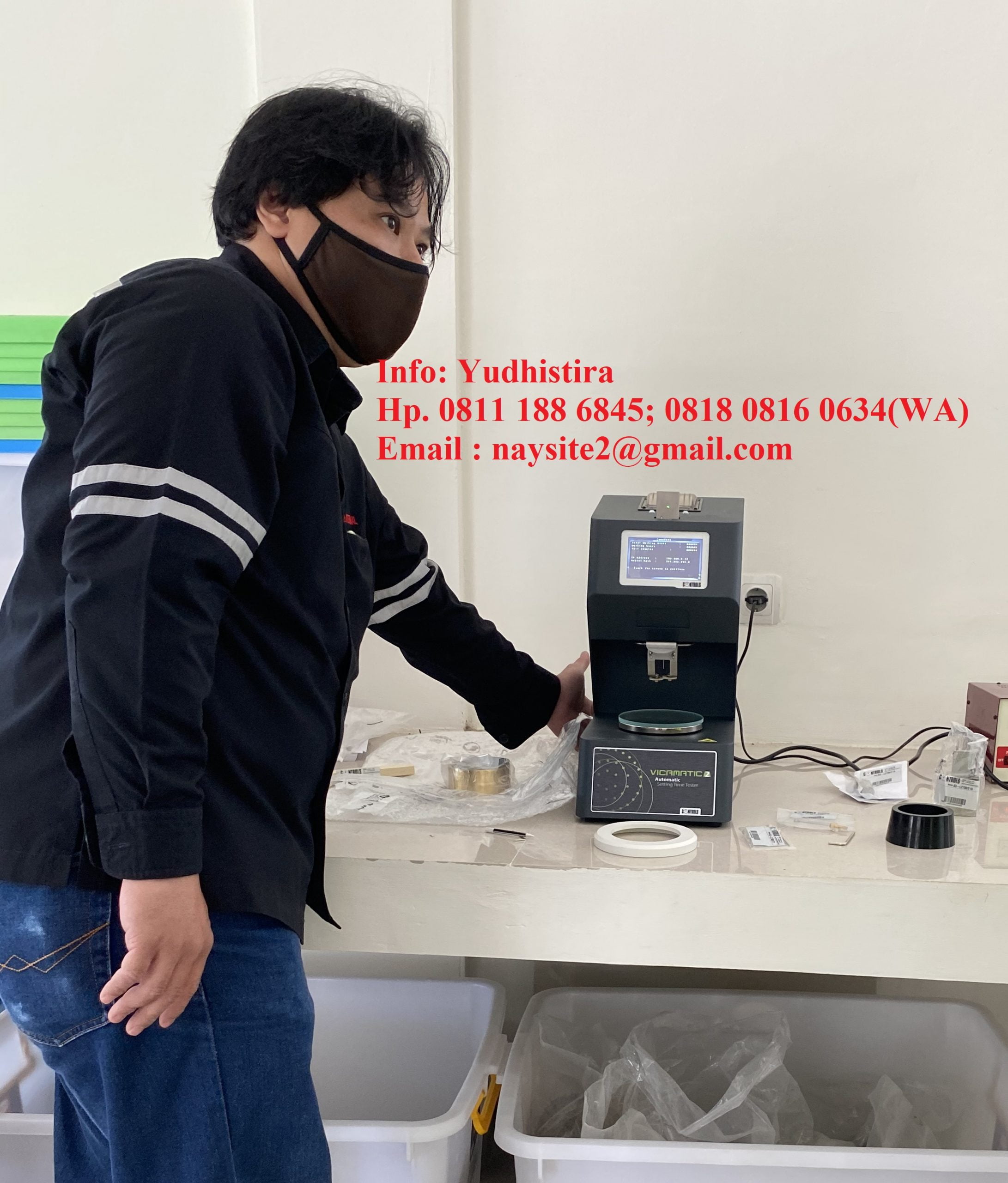

Alat Uji Vicat Otomatis – Vicamatic 3

Automatic setting time tester for cement, mortar and gypsum

Brand : Controls – Italy

Model : 63 – L2701/E

Standard : EN 196-3 | EN 480-2 | ASTM C191 | AASHTO T131

General Description :

CONTROLS have long tradition in manufacturing automatic setting time testers for cement and mortar. A new generation, the fourth one, is now available, featuring a large color 5.1” touch screen display. As with the older generations the test procedure is unchanged, a needle (or a probe) drops freely into a cement sample at regular intervals and in fixed positions. Penetration depth is measured by a sensor with 0,1 mm resolution. Along with hardening process development the penetration depth decreases, when it matches some thresholds pre-defined by Standards initial and final setting times are measured and recorded.

Main Features :

• Advanced electronics technologies providing superior performances and total flexibility combined with simplicity in use
• Easy-to-use double interface: local mode, with large size 5.1″ touch screen color display, and remote mode, with PC

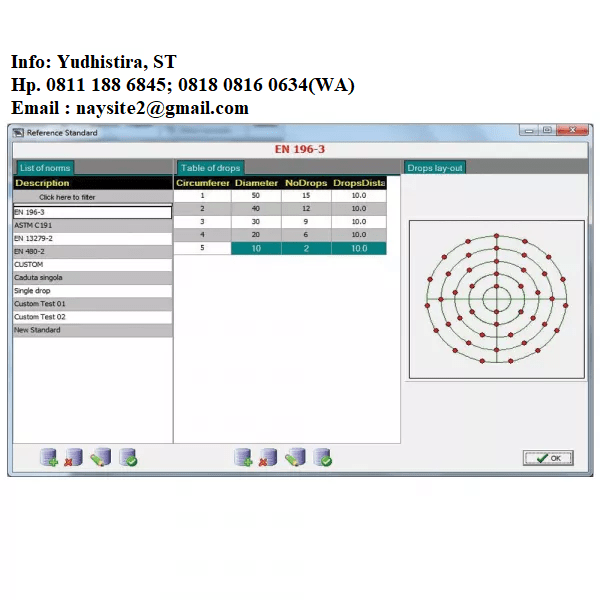

• Supplied complete with PC software for data processing VICASOFT-BASIC
• With PC software VICASOFT-PREMIUM (optional) up to 32 indipendent units (includign VICAMATIC 2 models) can be connected to a single PC via LAN port and hub. All units are remotely controlled. Adopting the multi-test network concept laboratory productivity is maximized

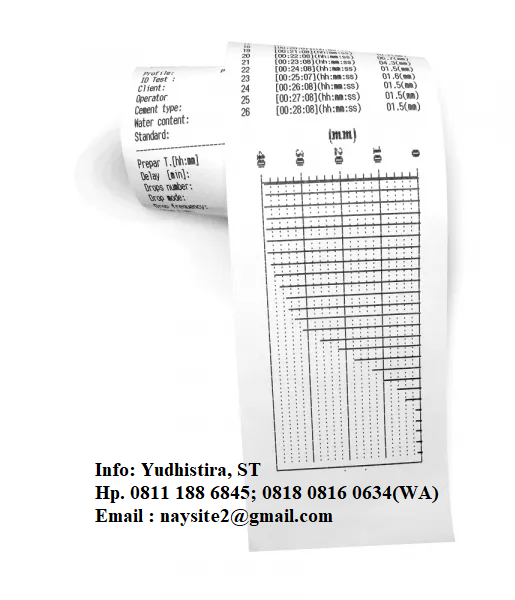

• Integrated graphic printer is available as optional accessory showing both results in numerical format and setting time plot
• Easy setting and storage of user-defined test profiles allowing quick test start
• Large accessibility to the test space
• Complete with needle cleaning device

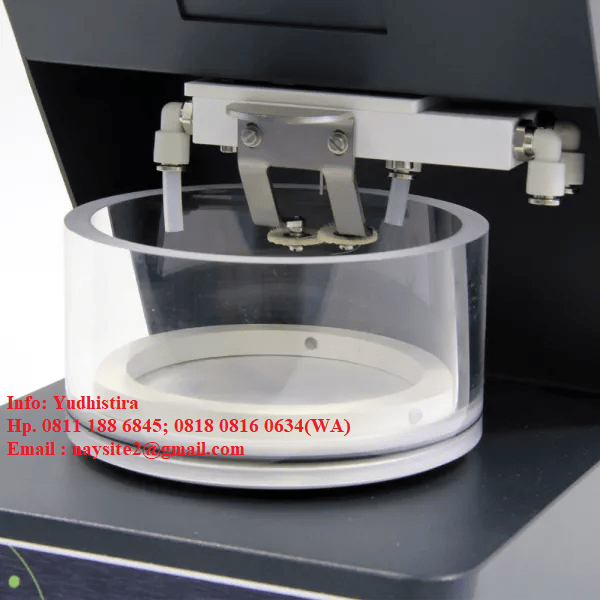

• Practical in-water testing accessory (optional)
• Automatic determination of initial and final setting time

Technical specifications

• Conforming to EN 196-3, 13279-2, 480-2, ASTM  C191, C187

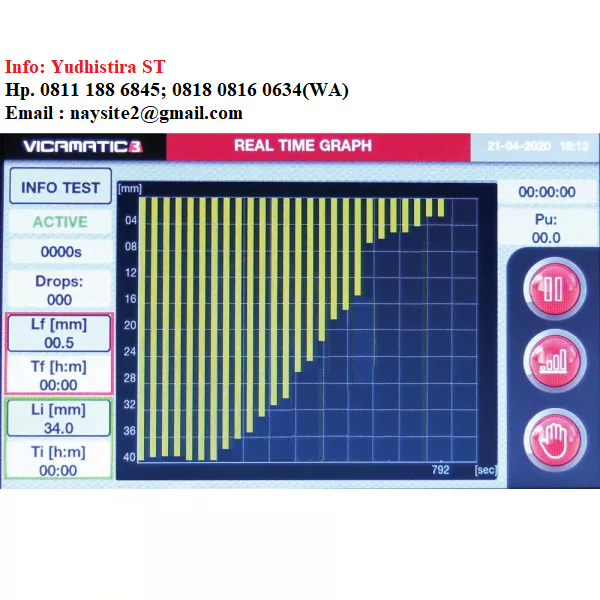

• 5.1”, 800 x 480 pixel, 16 M colors, icon-driven touchscreen graphic display, showing data and plots
• LAN port for direct connection to PC of a single unit or connection to a LAN hub for creating a network with up to 32 independent units all controlled by a single PC. 1 LAN cable is included
• USB port for test data download to PC and easy firmware upgrade
• Unlimited storage capacity for test data on internal 16 GB SD card
• Test procedures can be customized and stored to match user-defined requirements
• Can incorporate an integrated graphic printer showing test result and setting time plot
• Large test space with easy accessibility
• Automatic calculation of initial and final setting time at programmable penetration depth limits
• Wide range of accessories including EN and ASTM/AASHTO parts, in-water testing kit, needle cleaning device, integrated printer, probes for testing consistency and gypsum
• Minimum penetrations rate: 10 seconds
• Penetration measurement by encoder
• Power: 50 W
• Dimensions: 200x400x410mm (L x W x H)
• Weight approx.: 10 kg

Firmware specifications

• Easy programming of customized test profiles, recallable for future tests, including:
  • adjustable test start delay
  • penetration points positions
  • manual or automatic penetration rate
  • free or driven dropping mode
  • holding intervals inside the sample
  • automatic end- test detection
  • automatic measurement of initial and final setting time
• Test data: test number, operator, client, date, hour, cement type, water percentage, delay
• Easy calibration menu
• Clock calendar
• Multi-language

Kode Barang:

Kode Barang terdahulu :

63-L2700/E VICAMATIC-2, automatic electronic apparatus for setting time test on cement/mortar/gypsum. Complete with EN 196-3

63-L2700/F VICAMATIC-2, automatic electronic apparatus for  setting time test on cement/mortar/gypsum. Complete with ASTM C191

63-L2700

82-SW/VS
VICASOFT-PREMIUM software for PC connection of up to 32 VICAMATIC-2 units including remote control of each unit, data acquisition – processing – filing, printout of  test reports.
Communication via LAN port (each VICAMATIC-2 unit is supplied complete with LAN cable). The connection of one VICAMATIC-2 unit is direct via the PC LAN-port, for more VICAMATIC-2 units (up to 32) one or more LAN hubs are required with total number of ports equal (or bigger) to the number of VICAMATIC-2 units included in the network. LAN hubs are not included
