Centrifuge Binder Extractors – 75-B2212

Centrifuge Binder Extractors – uji pemisahan aspal dan penentuan kadar aspal dari campuran beraspal dengan cara sentrifus

Model : 75-B2212, 75-B2222, 75-B2312, 75-B2322

Brand/Supplied From : Controls – Italy

Standards : EN 12697-1, ASTM D2172, AASHTO T164-A (Padanan SNI 03-6894-2002)

ASTM D2172 : 1.1 These test methods cover the quantitative determination of bitumen in hot-mixed paving mixtures and pavement samples.

Description

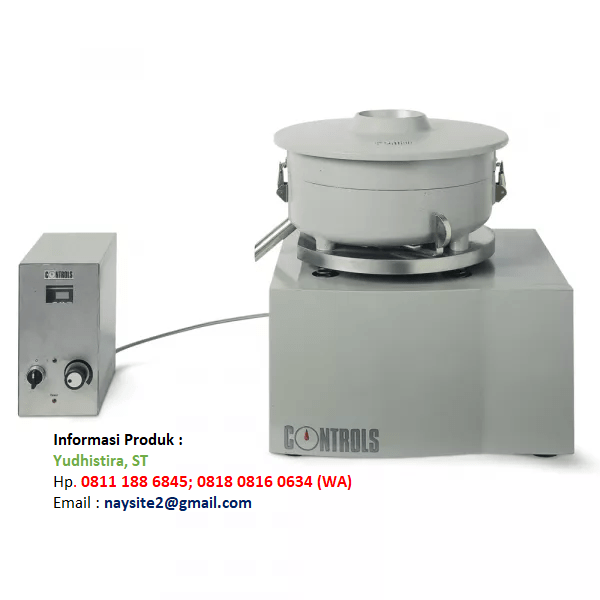

The centrifuges are used for the determination of bitumen percentage in bituminous mixtures. All models comprise a removable precision-machined rotor bowl housed in a cylindrical aluminium box. They are driven by an electric motor fit with AC drive (inverter) with the double function of speed control up to 3600 r.p.m. regardless of the frequency (50 or 60 Hz) and electrical braking. The centrifuge can be set for the automatic speed ramp up to 3600 r.p.m. or to any intermediate speed by the front knob. A digital display monitors the frequency, which is proportional to the speed.
The rotating unit is suspended on the base by four calibrated springs, which assure a perfect stability all over the test. The cover is precisely machined and fit with solvent resistant gasket to avoid leakages.
All models are fit, for emergency use, by a hand brake system. The control panel includes: Start/Stop button, speed control knob, and digital display.
Two capacities and two versions available:

• Standard 1500 and 3000 g cap. (75-B2212,75-2214; 75-B2312,75-2314)
• Explosion proof 1500 and 3000 g cap. (75-B2222; 75-B2322)

The standard models can be upgraded with an electromagnetic system to prevent the opening of the cover during rotation. This option (see code 75-B2210/UP1) is applicable on standard models only and has to be factory installed.

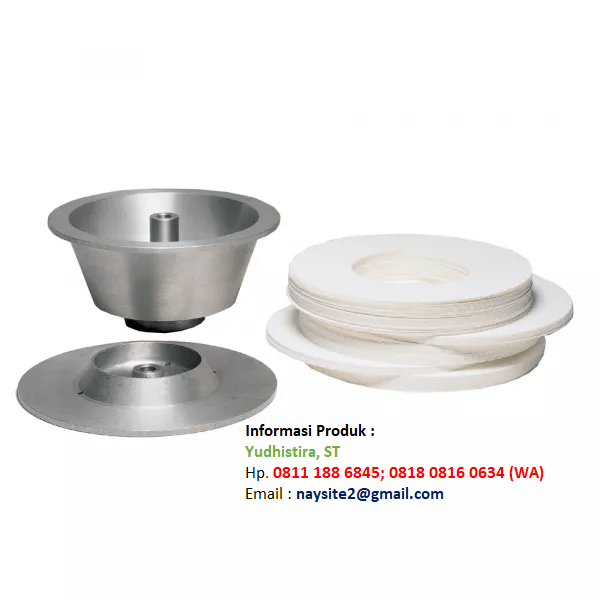

All centrifuges are supplied complete with 100 filter discs.
All centrifuges can fit different capacity spare bowls (75-B0022/2 and 75-B0023/2)

Technical Specifications

• AC drive motor (inverter), 550 W
• Overall dimensions (lxdxh): 539x406x509 mm
• Weight approx.: 54 kg
