Covermeter Bartracker 58-E6102

Covermeter Bartracker 58-E6102

Brand/Supplied From : Controls – Italia

Model : 58-E6102

Standard : BS 1881:204

BS 1881:204 : This Part of BS 1881 gives recommendations on and describes the principles of operation of electromagnetic devices that may be used for estimating the position, depth and size of reinforcement buried in concrete. It also describes their methods of use and applications, the accuracy to be expected and the factors which may influence the results.

Main Features :

• Rebar location
• Rebar orientation
• Depth of cover
• Cover reading thickness mm or inches

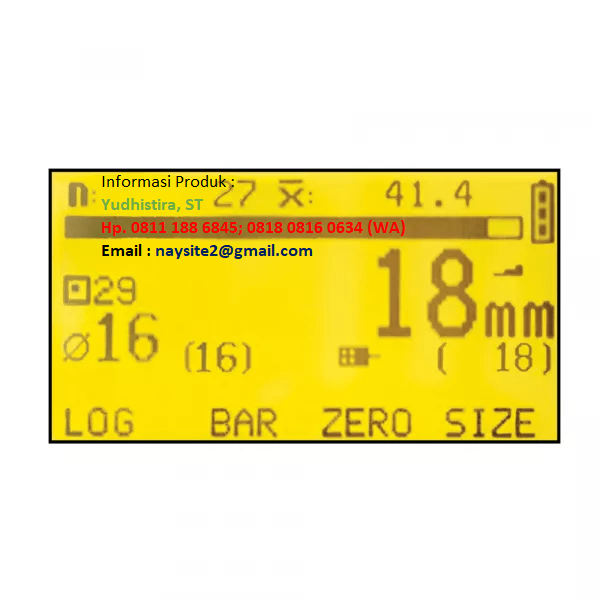

• Large graphic display with backlight
• Multiple language menu structure
• Signal strength bar
• Interchangeable heads with led and keypad
• User selectable bar range sizes and numbers
• Autosize mode for quick bar diameter determination

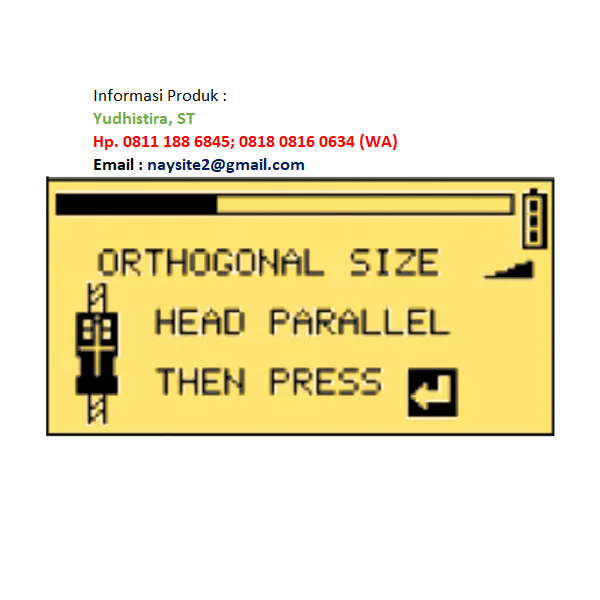

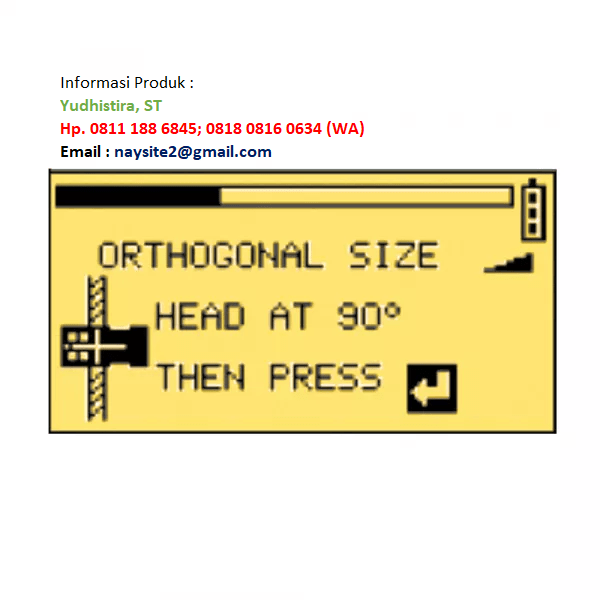

• Orthogonal mode for bar diameter determination
• Other models of search head available on order for Narrow pitch search, Deep cover search, Borehole. See accessories.
• RS 232 output to PC
• EDTS MS EXCEL link software
• Data logging
• Adjustable beep volume & earphone socket

General Descripstions :

Introduction
Used to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, furthermore it is also used  to identify the location, orientation and diameter of  reinforcement bars (rebar). The basic unit can be completed with a number of optional probes for various determination. See accessories.

Description
The Bartracker, which use the Pulse induction technique, features a rugged waterproof IP 65 case with a probe storage for easy portability.

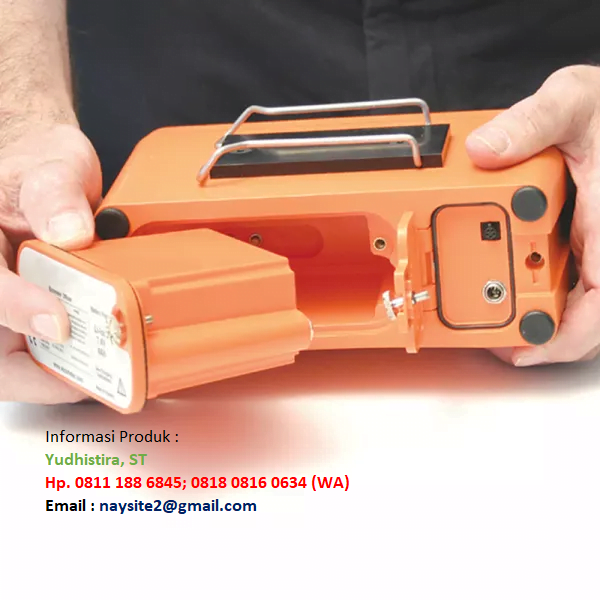

The battery pack can be recharged inside or outside the gauge. The display screen shows you everything you need to know.

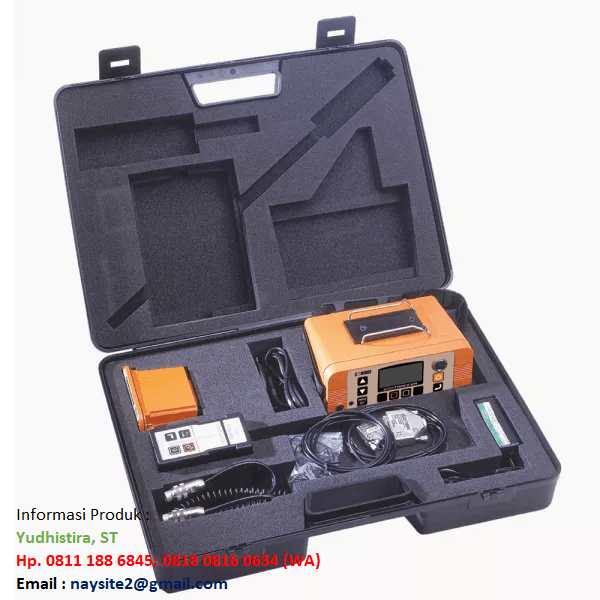

The gauge is supplied complete with:

• Main unit
• Standard search head to meet most of measurement requirements to identify 40 mm dia. bar up to 95 mm depth (approx.), 8 mm dia. bar up to 70 mm depth (approx.), sensing area 120×60 mm.
• PC cable
• Battery pack and charger
• Shoulder strap
• Earphone
• Carry case and instruction manual

Important note
Standard and optional search heads, can be supplied on order, complete with calibration certificate. See ordering information.

Technical Specifications :

To identify reinforcement bar diameters:

• Metric: 5 – 50 mm diameters in 21 values
• US bar numbers: #2-#18 bar sizes in 16 values

Rechargeable power supply:

• 7.4 lithium ion battery pack providing up to 32 hours of continuous use (20 hours if backlight on). Rechargeable in 4 hours either inside or outside the gauge using the external charger

Maximum operating temperature: 50°C
Unit dimensions: 230x130x125 mm
Unit weight: 1.54 kg
