DCP – Dynamic Cone Penetrometer

DCP – Dynamic Cone Penetrometer

Brand/Supplied From : Controls – Italy

Standard : ASTM D6951

Model : 16-T0012/D Dynamic cone penetrometer

ASTM D6951 : 1.1 This test method covers the measurement of the penetration rate of the Dynamic Cone Penetrometer with an 8-kg hammer (8-kg DCP) through undisturbed soil and/or compacted materials

Description

This apparatus in used for the rapid in-situ measurement of the structural properties of existing road pavements constructed with unbound materials. Continuous measurements can be made down to a depth of approximately 850 mm or, when extension shafts and rods are used (available as accessories), to a recommended maximum depth of 2 m. Where pavements layers have different strengths the boundaries can be identified and the thickness of the layers determined. Correlations have been established in earlier work (Van Vuuren, Klein and Van Herden, Smith and Pratt) between  the Dynamic Cone Penetrometer (DCP) and California Bearing Ratio (CBR) so that results can be interpreted and compared with CBR specifications.

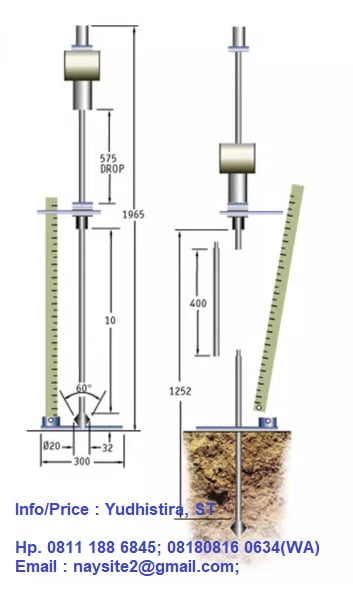

Technical Specifications

• 8 kg dropping weight with 575 mm drop
• 2 penetration tip 60° cone, 20 mm dia.
• drive rod 1 meter long
• vertical scale
• wrench and carrying case. All contained in a carrying case.
• Case dimensions:  1200x350x200 mm approx.
• Weight approx.: 30 kg
