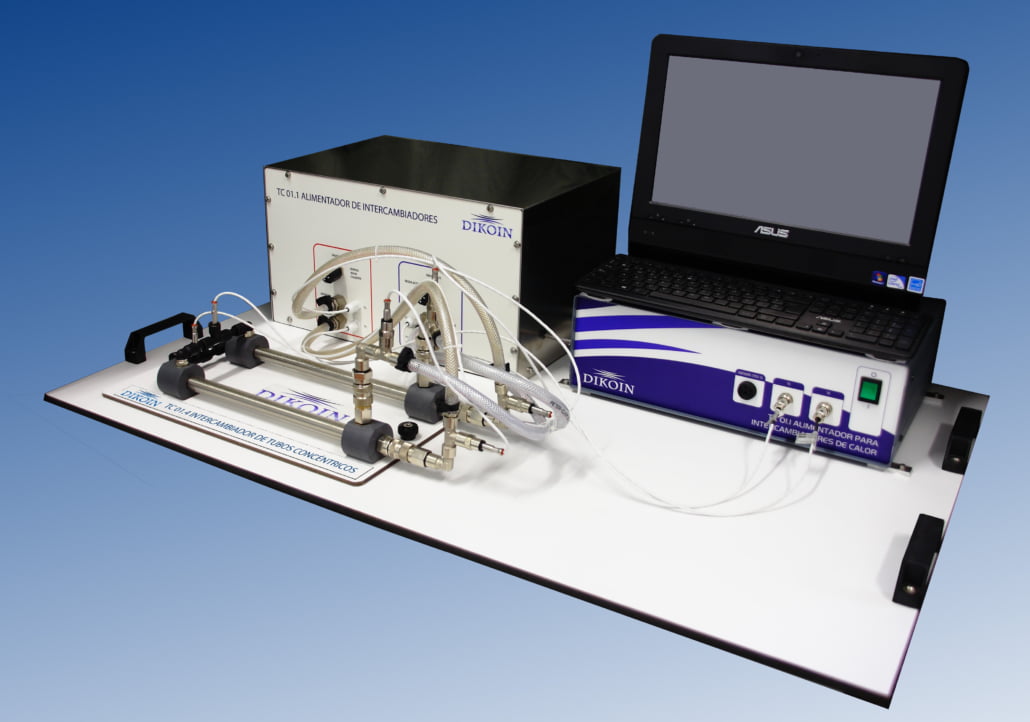

HEAT EXCHANGER BASE UNIT

Brand/Supplied From : Dikoin – Spanyol

Kode Barang : TC 01.1

General Descriptions:

All device connections are fast, self-sealant connectors that allow for a quick and simple replacement of exchangers without any loss of fluid. The connections for hot and cold water are clearly differentiated to prevent mistakes.

The equipment unit has a tank for hot water with 4,5 litre capacity, as well as electronic controllers both of temperature and water level. An electromechanical valve fills up the tank automatically as needed. The water storage system is protected against overheating, low water level and overflowing.

The pumping system has a bypass line, which makes the pump operation smoother and the conditions in the tank steadier.

Learning Objects :

• Demonstration of heat transfer.
• Parison of different types of heat exchangers.
• Comparison of results with flows co-current and countercurrent.
• Transfer coefficient measurement, the effects of flow rate and temperature differential.
• Calculation of energy balance and efficiency.

Technical Data:

• Adjustable from 0 to 1.5 kW heater from the computer.
• Peripheral Pump:
• Maximum flow: 10 l / min (5m.c.a.)
• Power consumption: 180W
• Hot water circuit with Bypass.
• Hot water maximum temperature: 60ºC.
• Maximum hot water flow rate: 5 l / min
• The unit is supplied with an electronic and computerized control system and representation, including computer.
• Dimensions: 730x1100x530 mm
