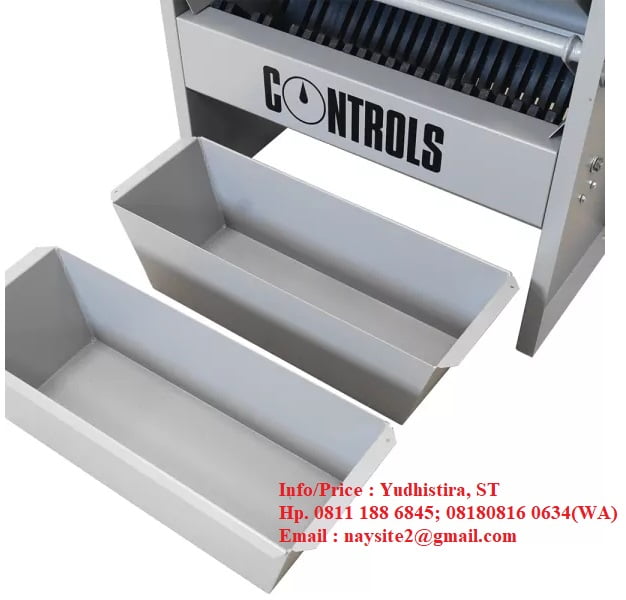

Large Capacity Sample Splitter

Merk/Di suplai dari : Controls – Italy

Kode Barang : 15-D0430/A

Standard : EN 933-3

EN 933-3: Tests for geometrical properties of aggregates – Part 3: Determination of particle shape – Flakiness index

Inti dan Isi dari EN 933-3:

Standar ini menjelaskan metode untuk menentukan Flakiness Index (FI), yaitu ukuran seberapa pipih (tipis dan lebar) partikel agregat kasar. FI digunakan untuk mengevaluasi bentuk partikel agregat, karena partikel yang terlalu pipih dapat menyebabkan kinerja campuran agregat menurun, terutama dalam beton atau aspal.

Highlights

Used to reduce large quantities of samples to a manageable size. Constructed of heavy gauge welded steel. Clamshell hopper to hold up to 28 dm³ (1 cu.ft). Single splitter chute provides flexibility in sizes of chute openings. Each chute bar is 12.5 mm (1/2 in.) wide so that adjustment is provided for any increment of 12.5 mm which will divide into the total 610 mm (24 in.) chute width an even number of times.

Technical Specifications

• For aggregates up to 150 mm size
• Adjustable openings from 12.5 mm with 12.5 mm increments
• Clam shell hopper 28 dm³ capacity
• Complete with two pans
• Dimensions: 720 x 464 x 745 mm (w x d x H)
• Weight approx.: 37 kg

Ordering Info :
