Mesin Uji Kuat Geser Langsung – Mekanika Tanah

Direct and Residual Shear Testing Machine DIGISHEAR

Model : 27-WF20D60

Brand/Supplied From : Controls – Italy

Standards : ASTM D3080(Padanan SNI 2813 : 2008), AASHTO T236, BS 1377:7, EN 17892-10

This test method covers the determination of the consolidated drained shear strength of a soil material in direct shear. (P.1.1 – ASTM D3080)

Metode pengujian ini digunakan sebagai pegangan dan acuan dalam pengujian laboratorium triaksial tekan pada batu tanpa konsolidasi dan tanpa drainase (SNI 2813 : 2008)

Description

Digishear is the entry level machine for direct/residual shear testing. It incorporates one high-resolution stepper motor with high precision transmissions.
The user interface is based digital display LCD 4-row by 20 characters permitting to start, pause and stop the test.

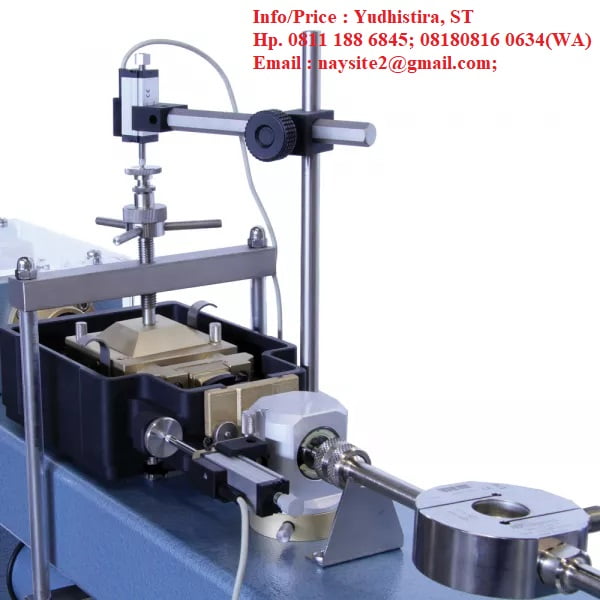

The axial transmission of the horizontal force adopts a straight connection through shear box, shaft and load cell. This design avoids the load measurement inaccuracies occurring with the widely used “swan neck” basic design.
A high quality techno-polymeric material has been adopted for the carriage of the shear box, offering excellent resistance to corrosion, wear and tear and to the chemicals often mixed with the soil specimens. Furthermore, this polymeric carriage is lightweight and easy to clean.
Vertical load is applied directly to the specimen via a loading yoke and a weights holding arm which amplifies 10 times the applied value.
The machine can be supplied in two different configurations:
– Analog with load ring and dial gauges
– Digital with load cell and displacement transducers that have to be connected to an external data acquisition system

Standard complate analog configuration is composed by:

• Digishear

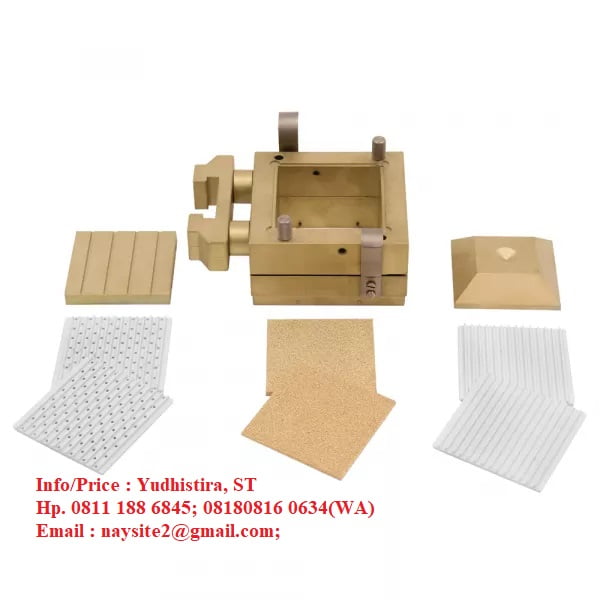

• Shear box (see related products)
• Vertical dial gauge (see accessories and related products)
• Horizontal dial gauge (see accessories and related products)
• Load ring (see accessories and related products)
• Set of weights (see accessories and related products)

Standard complate electronic configuration is composed by:

• Digishear
• Shear box (see related products)
• Vertical displacement transducer (see accessories and related products)
• Horizontal displacement transducer (see accessories and related products)
• Load cell (see accessories and related products)
• Data acquisition (see accessories and related products)
• Template for data processing ( see accessories)
• Set of weights (see accessories and related products)

Technical Specifications

• Maximum shear force: 5000 N
• Maximum vertical force: 500 N or 5000 N using 10:1 cantilever loading device supplied with the machine
• Maximum horizontal travel: 23 mm
• Test speed: from 0.00001 to 15.00000 mm/min
• Digital display: LCD 4 row by 20 characters
• Sample type and size: up to 100 mm square or round
• Overall dimensions: 1040 x 350 x 1200 mm (l x d x h)
• Multivoltage: Multifrequency power supply 230 V, 50 Hz or 110 V, 60 Hz
