Mesin Uji Marshall dengan pembacaan analog


Description

Mesin Uji Marshall dengan pembacaan analog

Brand/Supplied From : Controls – Italia

Standard : ASTM D1559 | ASTM D5581 | AASHTO T245 | ASTM D6927

Kode Barang : 76 – B0030/A

Main Features :

  • 50 kN maximum capacity, suitable for testing 4″ and 6 ” dia. specimens
  • High precision load rings fitted with 0.001 mm resolution gauge conforming to standard

General Descriptions :

A bench mounted compression frame with motor and worm gear housed within the base unit. A limit switch is provided for the bottom limit of travel. The machine is supplied complete with load ring, 30 kN cap., incorporating stem brake feature to hold the maximum reading. For testing 6” dia. (152.4 mm) specimens, the 82-T1009/F load ring should be used instead of the 30 kN fit on the machine. All the load rings are provided with 0.001mm high resolution dial gauge, assuring a strict conformity to the standards. See accessories.
The stability mould and flow meter have to be ordered separately. See accessories.

Other testing machines are available to perform the Marshall stability test, conforming to either ASTM/AASHTO or EN standards.



Technical Spesifications :

  • Max. capacity: 50 kN
  • Load ring cap.: 30 kN  (50 kN using the 82-T1009/F load ring. See accessories).
  • Platen speed: 50.8 mm/min
  • Power rating: 736 W
  • Overall dimensions (hxlxd):  1028x392x560 mm
  • Weight approx.: 85 kg



Ordering Info :

76-B0030/A
Marshall compression testing machine with motorized ram, two-column structure and adjustable crossbeam. Supplied with load ring 30 kN capacity with peak hold function, complete with 0.001 mm resolution dial gauge (fully conforming to the standards) and compressione device.
230 V, 50 Hz, 1 Ph

76-B0030/AY
Same as above but 220 V, 60 Hz, 1 ph

76-B0030/AZ
Same as above but 110 V, 60 Hz, 1 ph

Load frame only:
76-B0030

Marshall compression tester, 50 kN cap. 230 V, 50 Hz, 1 ph

76-B0030/Y
Marshall compression tester, 50 kN cap. 220 V, 60 Hz, 1 ph

76-B0030/Z
Marshall compression tester, 50 kN cap.110 V, 60 Hz, 1 ph



Accessories :

Accessories to complete the 76-B0030 frame only
34-T0104/10
Compression device. To fit the load ring to press the stability mould
Configuration 1

82-T1007/F

Load ring, 30 kN cap., fitted with gauge 0.001 mm res., complete with stem brake feature to hold the maximum reading.
82-T1009/F

Load ring, 50 kN cap., fitted with gauge 0.001 mm res., complete with stem brake feature to hold the maximum reading. (As alternative to 30 kN model)

Alternative configuration

82-T1007/FC
Load ring, 30 kN cap., fitted with gauge 0.01 mm res., complete with stem brake feature to hold the maximum reading.
82-T1009/FC
Load ring, 50 kN cap., fitted with gauge 0.01 mm res., complete with stem brake feature to hold the maximum reading. (As alternative to 30 kN model)

Accessories common to both configuration above

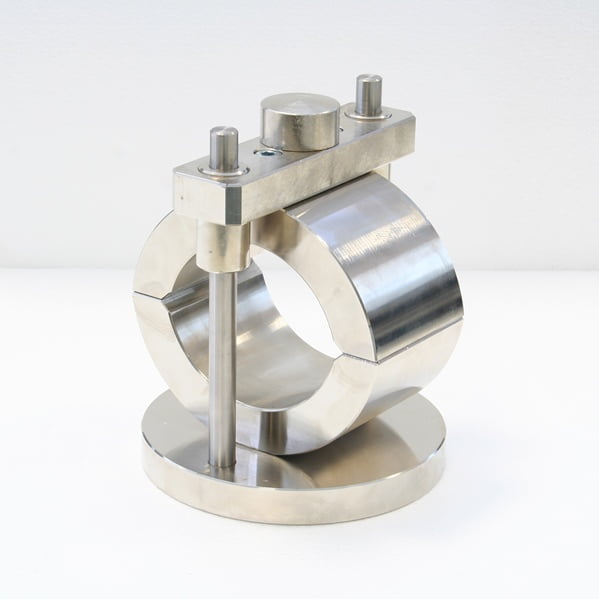

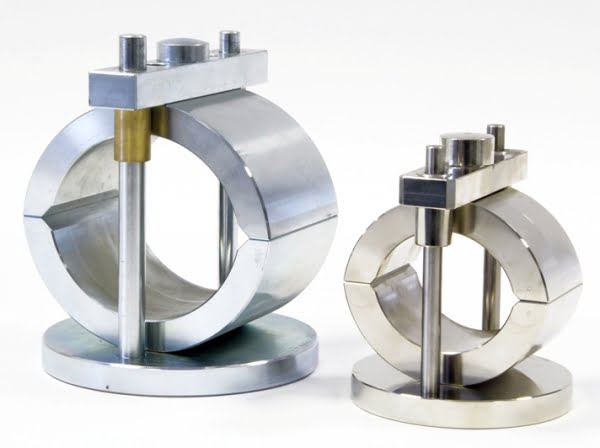

76-B0033/4
Stability mould for 4” dia. (101.6 mm) specimens

76-B0033/6
Stability mould for 6” dia. (152.4 mm) specimens to ASTM D5581

76-B0034
Flow meter

76-B0031/2

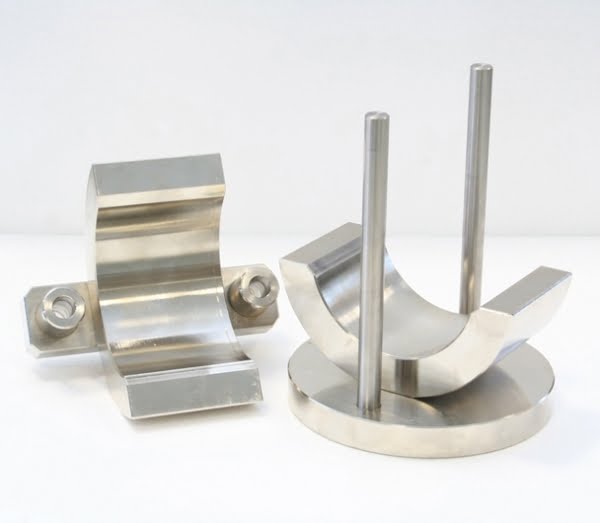

Stability mould cast aluminium, open type



Info/Price :

Yudhistira, ST

Hp. 0811 188 6845; 08180816 0634(WA)

Email : naysite2@gmail.com;
