Mesin Uji Universal untuk Uji CBR, Marshall, UCS, dan lainnya

UNIFRAME large automatic stand-alone universal compression/flexural tester

Mesin Uji Universal untuk Uji CBR, Marshall, UCS, dan lainnya

Brand : Controls – Italy

Kode Barang : 70-T1182

Standard : EN 12697-34 | ASTM D1559 | ASTM D5581 | EN 12697-12 | ASTM D6927

Fitur Utama Mesin :

• Terdiri dari mesin yang berdiri sendiri dengan frma pembebanan digital otomatis
• Menjadikan mesin uji yang universal untuk melakukan rangkaian pengujian yang luas
• Sudah menggunakan teknologi “Closed-loop speed/load control”
• Deteksi Failure/keruntuhan secara otomatis
• Akuisisi data dalam 4 channel
• Integrated transducer calibration facility
• Infinitely variable speed from 0.05 to 51 mm/min
• Large touchscreen display for viewing real-time graph and test data
• CBR and Marshall test automatic control facility
• Adjustable travel limit devices
• Rapid approach and return functions ensure test time savings
• CE emergency stop button

Introduction

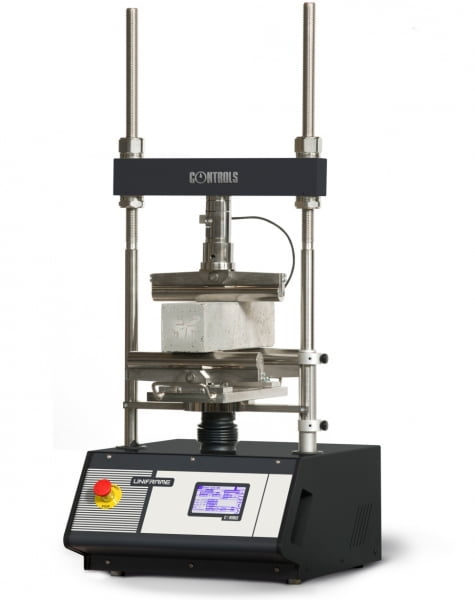

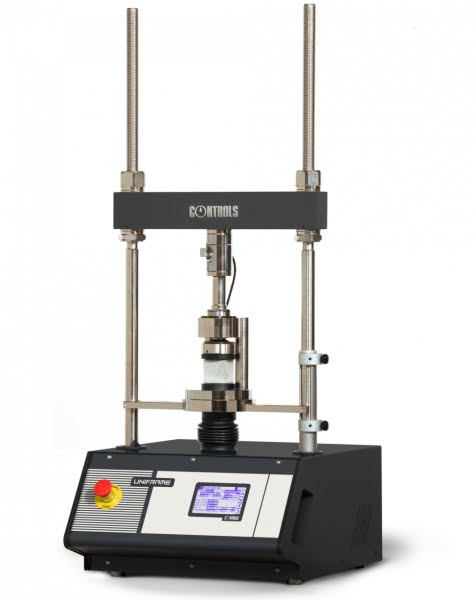

The UNIFRAME universal automatic flexural and compression tester is a large machine for displacement and load controlled tests. The main advantage of this machine is its high flexibility as a general purpose testing system, ensured by its generous dimensions which allow the placement of an extensive range of accessories, and the software. A wide range of tests can be performed: CBR, Marshall, Triaxial, Flexural tests on concrete beams and tiles, Unconfined compression, punching tests and many more.

Description
This model features a robust and compact two-column frame which is fitted with an upper crossbeam that can be set at various heights depending on the accessories to be used. The jack is driven by a DC motor controlled by the microprocessor.
The load jack, DC motor and controls are housed in an ergonomic cabinet. Closed-loop control ensures reliable test execution both with displacement and load applications. No external transducer is required for displacement measurement. Sample failure is detected automatically and stops the test. Alternatively this feature can be disabled and a travel or time limit can be set instead.
This model is equipped with adjustable limit switches, mounted on one column. An handlewheel is used to manually move the the platen during calibration procedure so that the load can be maintained constant with good precision. This facility can be used for the calibration of any load cell present in the laboratory and not only for the one supplied with the machine.
Software user-interface allows the setting of speed/load and travel/load limits, data format download and graph settings, and saving of pre-set test procedures (up to 10 profiles can be saved in the internal memory of the machine).
The firmware allows performance of up to four transducer calibrations (two load cells and two potentiometric linear transducers), saving data onboard.  A real-time test graph and transducer data are displayed on the touchscreen.
The front panel is fitted with an emergency button for prompt stopping of the machine. Test data can be stored on a USB pen drive or downloaded through LAN communication port in Controls, txt or ASCII format.
All accessories have to be ordered separately.

Data download: using LAN port  (ASCII, TXT or Controls format)
Resolution: 132000 divisions
Sampling frequency: 50 samples/s
Large memory data storage in USB pen drive

Ordering Info :

70-T1182
UNIFRAME  stand-alone automatic compression tester, 50 kN capacity, 4 channel built-in data acquisition for load/displacement controlled testing. 230 V, 50-60 Hz, 1 ph

70-T1182/T
UNIFRAME  stand-alone automatic tension/compression tester, 25/50 kN capacity, 4 channel built-in data acquisition for load/displacement controlled testing. 230 V, 50-60 Hz, 1 ph

70-T1192
UNIFRAME  stand-alone automatic compression tester, 100 kN capacity, 4 channel built-in data acquisition for load/displacement controlled testing. 230 V, 50-60 Hz, 1 ph

Accessories :

Very often this machine is used for both CBR and Marshall tests. In order to avoid duplication we offer a kit of accessories here below.
If further tests have to be performed, please refer to the web page universal tester accessories.

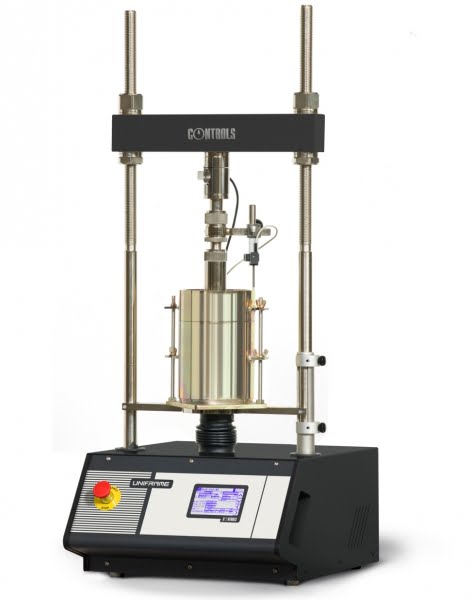

CBR: EN 13286-47, ASTM D1883, AASHTO T193
34-V0107/CBR
Test set to perform the CBR test in the digital mode, including:

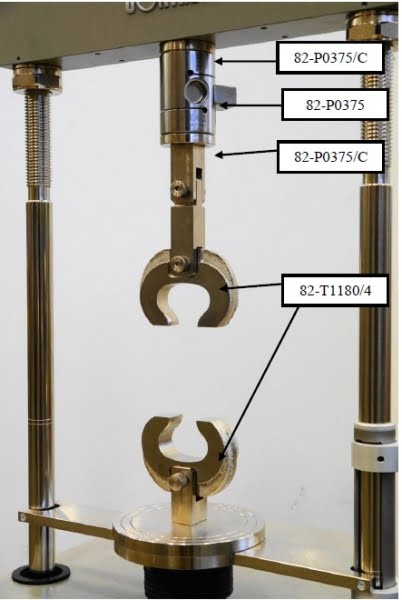

82-P0375 Load cell 50 kN capacity
82-P0375/C Adapter to fit load cell (two pieces)
82-P0322 Displacement transducer, 25 mm travel
34-T0104/81 Adjustable transducer holder
34-T0103/1 Adjustable CBR penetration piston
All above items can be ordered individually.

Marshall: EN 12697-34, ASTM D1559, ASTM D6927
34-V0107/MAR
Test set to perform the Marshall test in the digital mode, including:
82-P0375 Load cell 50 kN capacity
82-P0375/C Adapter to fit load cell (two pieces)
82-P0322 Displacement transducer, 25 mm travel
34-T0104/81 Adjustable transducer holder
34-T0104/13 Compression device extension
34-T0104/10 Compression device
76-B0033/4 Stability mould for 4″ (101.6 mm) diameter specimens
All above items can be ordered individually.
