Oven Pengering Laboratorium


Description

General purpose ovens

Merek : Controls – Italy

Kode Barang :

Seri L : 10-D1390/10L; 10-D1390/25L; 10-D1390/45L;

Seri H : 10-D1390/10H; 10-D1390/25H; 10-D1390/45H;

Seri Q : 10-D1390/10Q; 10-D1390/25Q; 10-D1390/45Q;

Kode Barang Lama(digantikan) : 10 – D1390/10; 10 – D1390/25; 10 – D1390/40

Standard : EN 932-5 ▸ EN 1097-5 ▸ ASTM C127 ▸ ASTM D1559 ▸ ASTM D698 ▸ ASTM D558 ▸ ASTM D1557 ▸ ASTM C136



Fitur Utama :

  • Reduced internal depth for improved operator’s comfort and safety
  • Temperature from ambient to 200°C
  • Exhaust holes for fast cooling
  • Forced convection airflow with fan positioned on the base for an even heat distribution

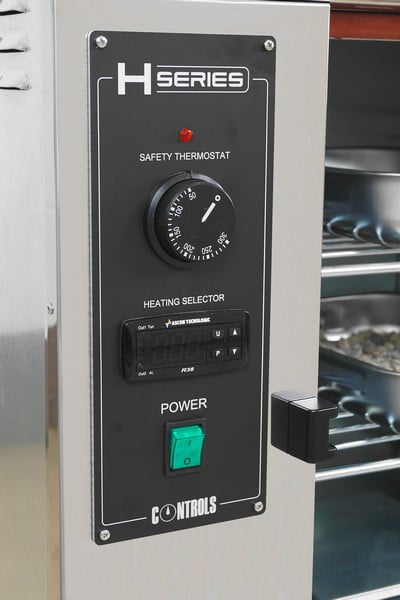

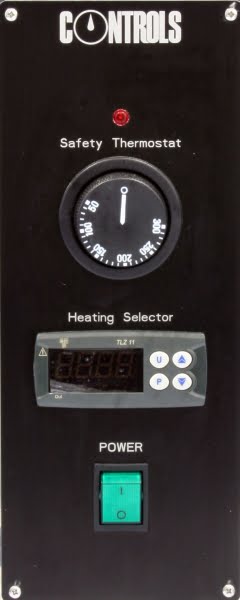

  • Temperature control via a thermoregulator with digital display
  • Mechanical safety thermostat to prevent overheating
  • Stainless steel front frame and door
  • Sturdy industrial hinges and handles



Deskripsi :

Oven Laboratorium Pengeringan kami telah dirancang khusus untuk laboratorium pengujian pada bidang teknik sipil dan semua persiapan sampel yang sangat berharga, tepat pada pengkondisian bahan konstruksi, seperti semen, beton, aspal, bitumen, batuan, tanah dan agregat. Mempertahankan suhu yang merata dan menerus sangat penting ketika menyiapkan sampel untuk pengujian bahan guna memastikan konsistensi dan pengulangan hasil.



Spesifikasi :

Models 10-D1390/10L
10-D1390/10LZ
10-D1390/25L
10-D1390/25LZ
10-D1390/45L
10-D1390/45LZ
10-D1390/10H
10-D1390/10HZ
10-D1390/25H
10-D1390/25HZ
10-D1390/45H
10-D1390/45HZ
Nominal capacity [L] 100 250 450
Max. temperature [°C] 200 200 200
Air convection  Forced Forced Forced
Max. number of shelves* 2 4 6
Rated power [W] 1300 2000 2500
Internal dim. (wxdxh), [mm] 440 x 461 x 492 671 x 571 x 638 761 x 621 x 958
External dim. (wxdxh), [mm]  722 x 623 x 750  953 x 733 x 890  1043 x 781 x1210
Weight (approx..), [kg] 60
70 (for 110V/60Hz model)
80
90 (for 110V/60Hz model)
120
130 (for 110V/60Hz model)


*2 standard included

Ordering Info :

L – SERIES
100 liters
10-D1390/10L

Forced convection laboratory oven with thermoregulator ON/OFF and 2 shelves.
100L capacity.
230V/50-60Hz/1Ph

250 liters
10-D1390/25L

Forced convection laboratory oven with thermoregulator ON/OFF and 2 shelves.
250L capacity.
230V/50-60Hz/1Ph

450 liters
10-D1390/45L

Forced convection laboratory oven with thermoregulator ON/OFF and 2 shelves.
450L capacity.
230V/50-60Hz/1Ph

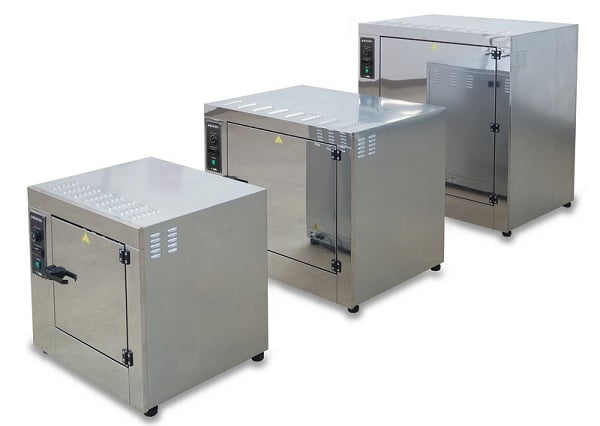

H – SERIES

100 liters
10-D1390/10H

High-precision oven with digital PID temperature control system and 2 shelves.
Fully conform to the main international Standard.
100L capacity.
230V/50-60Hz/1Ph

250 liters
10-D1390/25H

High-precision oven with digital PID temperature control system and 2 shelves.
Fully conform to the main international Standard.
250L capacity.
230V/50-60Hz/1Ph

450 liters
10-D1390/45H

High-precision oven with digital PID temperature control system and 2 shelves.
Fully conform to the main international Standard.
450L capacity.
230V/50-60Hz/1Ph

Aksesoris :

10-D1390/G10

Spare grid shelves for 10-D1390/10x series

10-D1390/G25

Spare grid shelves for 10-D1390/25x series

10-D1390/G45

Spare grid shelves for 10-D1390/45x series





Kode Model Oven yang lama :

10-D1390/10
100 liters cap. natural convection oven, digital thermoregulator/indicator. 230 V, 50-60 Hz, 1 ph10-D1390/25
250 liters cap. forced convection oven, digital thermoregulator/indicator. 230 V, 50-60 Hz, 1 ph10-D1390/40
400 liters cap. forced convection oven, digital thermoregulator/indicator. 230 V, 50-60 Hz, 1 ph
Aksesoris :
10-D1390/T10
Spare grid shelf for 10-D1390/1010-D1390/T25
Spare grid shelf for 10-D1390/2510-D1390/T40
Spare grid shelf for 10-D1390/40

Price : Call For Info
