Perangkat Uji Penetrasi aspal – Penetrometer Aspal

Standard penetrometers

Standard : EN 1426, ASTM D5, AASHTO T49(Padanan SNI 2456:2011)

Model : 81-B0100/D, 81-B0100/E

Fitur Utama :

• Pengukuran penetrasi digital
• Lengkap dengan penyesuaian vertikal mikrometer
• Versi semi-otomatis dilengkapi dengan pengontrol otomatis, lengkap dengan penyesuaian vertikal mikrometer dan pengatur waktu elektronik yang dapat disesuaikan dari waktu jatuh
• Tersedia Perendam Air yang dilengkapi dengan sirkulasi digital, koil pendingin dan probe perendaman. Juga Pendingin air tambahan tersedia tetapi tidak sepenuhnya diperlukan
• Timer elektronik memungkinkan pengguna untuk mengatur dan membaca waktu jatuh jarum selama pengujian

General Descriptions :

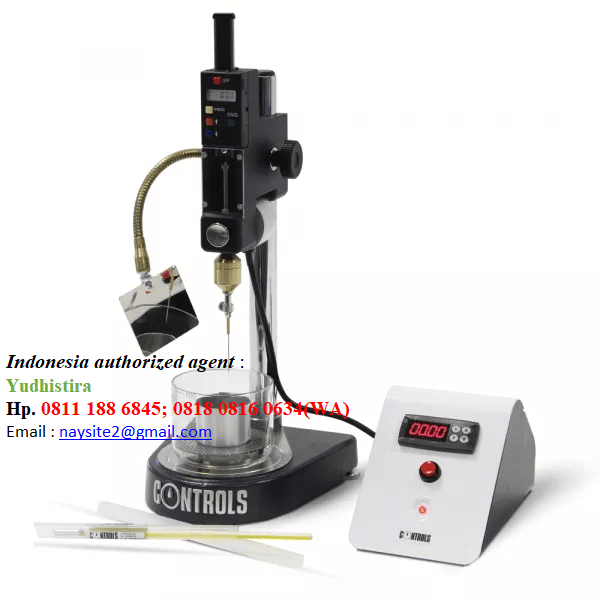

Cast iron base with leveling screws, digital penetration measurement gauge 0.01 mm precision, release button, automatic zeroing. Semi-automatic model 81-B0101/E is supplied complete with automatic controller, which automatically releases the plunger by a magnetic device, complete with micrometer vertical adjustment and adjustable electronic timer of the fall time, according to EN 1426, ASTM D5, AASHTO T49. Both models are fit with a micrometer vertical adjustment device. Needles, cups, thermometer  and mirror are not included and have to be ordered separately. See accessories.

The instrument is provided with lead screw gear arrangement, Leveling screws, Spirit level. The head can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The electronic timer allows the user to set up and read the fall time of the needle during testing.

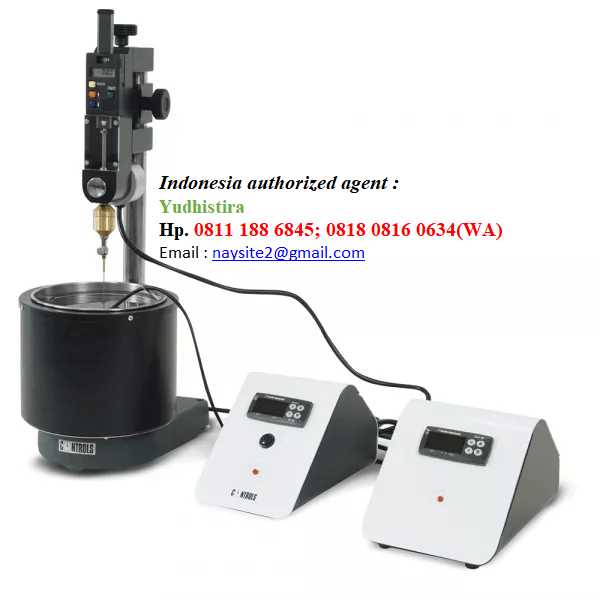

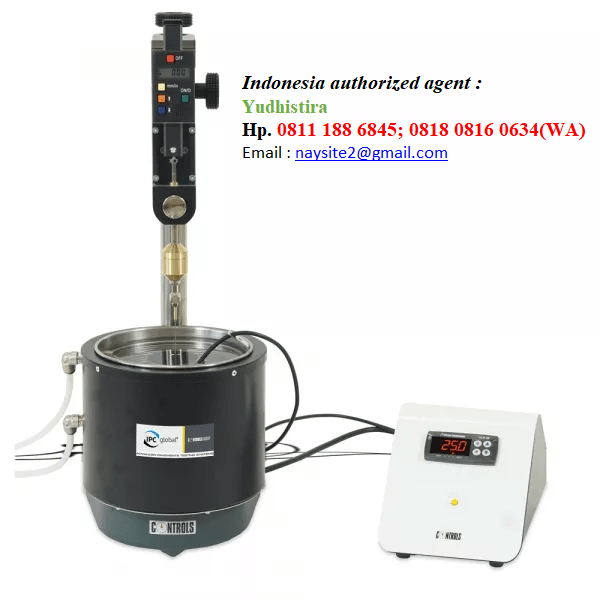

The test should be performed placing  the penetration cup in thermostatically controlled water, using the suitable device as the 81-B0102/C Digital circulation water bath with conditioning vessel. See accessories.

• Weight approx.: 8.5 kg

Indonesia authorized agent :

Yudhistira

Hp. 0811 188 6845; 0818 0816 0634(WA)

Email : naysite2@gmail.com
