Single Wheel Tracker 78-PV3502

Dyna – Track Single Wheel Tracker

Brand : Controls – Italia
Standard : EN 12697-22

Model : 78-PV3502

Main Features :

• Automatic test control by data acquisition and processing system
• Large permanent memory to store test data and results
• RS 232 ports for connection to PC and printer
• Real time display of number of cycles, rut depth and temperatures
• Tracks for specified number of passes or to specific rut depth
• Adjustable load cycle frequency
• Double temperature measurement: inside the specimen and in the cabinet
• Test temperature range from ambient to 65°C
• Motorized loading arm for easy positioning
• Double glazed doors for observation of testing cycle
• Testing software included for procedures EN, A and B, and custom defined

General Descriptions :

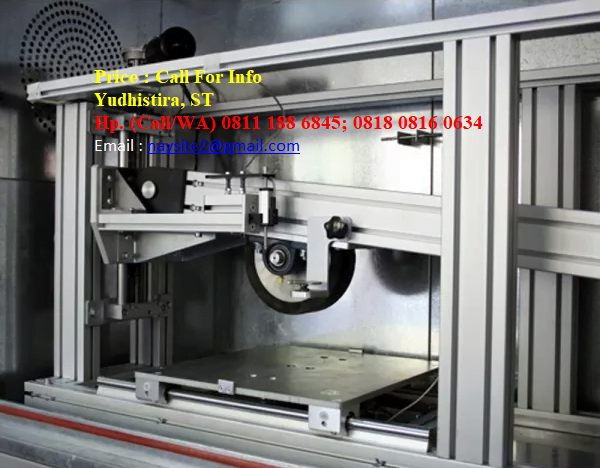

The wheel tracking apparatus consists of a loaded wheel, which bears on a sample held on a moving table. The table reciprocates with simple harmonic motion through a distance of 230 ± 5 mm with a frequency of 53 passes (± 1%) per minute. For reasearch purposes the test speed can be adjusted by inverter control. The wheel is fitted with a solid rubber tyre of outside diameter 200 mm. The wheel load under standard conditions is 700 ± 10 N. The wheel tracker is fitted with a temperature controlled cabinet with a temperature range from environment to 65°C ± 1.0°C.The sample may be either a 200 mm diameter core or a 300 x 400 mm slab of asphaltic mixture from 25mm to 100 mm thick. A 25 mm stroke LVDT transducer is included for monitoring rut depth in the centre of a sample during a test to better than 0.1 mm.
The deformation and sample temperature is recorded by the internal data acquisition and control system, then sent to the Windows® compatible software.

Spesifications :

Wheel Tracker:

• Conforming to EN 12697-22 Small scale device
• Table displacement with adjustable speed by inverter
• Motorized vertical adjustment of the loading arm
• Wheel with solid rubber tyre 200 mm external dia.
• Wheel weight 700 N (900 N available on request)

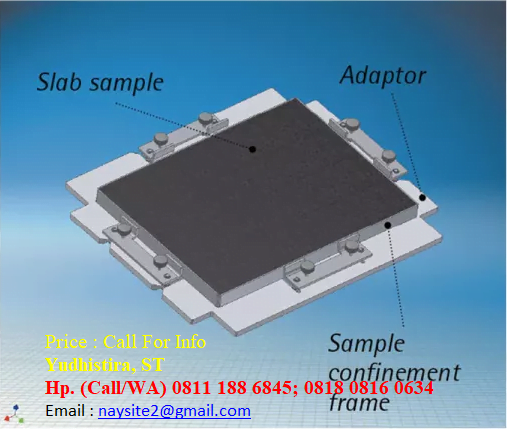

• Suitable for large core specimens and slabs up to 400×300 mm.
• Slab thickness from 25 to 100 mm
• 25 mm stroke transducer with resolution better than 0.1 mm
• Integral temperature controlled cabinet
• Test temperature range adjustable from environment to 65°C
• Double glazed doors for test monitoring

Hardware

• 16 bit microprocessor.
• One CPU card to control both test data visualization, temperature control, database and internal functions management control.
• Large permanent memory to store test results.
• 10 key membrane touch keyboard.
• 240 x 128 pixel graphical display.
• RS 232 output for PC connection.

Firmware

• Language selection.
• Clock/Calendar system.
• Fully automatic test control
• Test setting menu, complete with descriptive sample parameters.
• Calibration menu to set and check temperature, table speed and displacement, and featuring a special function for manual control of the test performance.
• Test performance menu with simultaneous display of all the test data (including real time table speed).
• Internal database up to 100 tests. Each test can be downloaded to a PC, displayed, printed or deleted.
• Download to PC via RS 232 serial port.
• Data processing to EN 12697-22 Small scale device, procedure A and B, and customised test
• Windows XP® compatible software, for printing of test certificates and multiple test processing (mean values).

SAFETY FEATURES

• Automatic stop of climatic chamber and moving table when opening the door
