5M FLUME FOR HYDRAULIC BENCH


Description

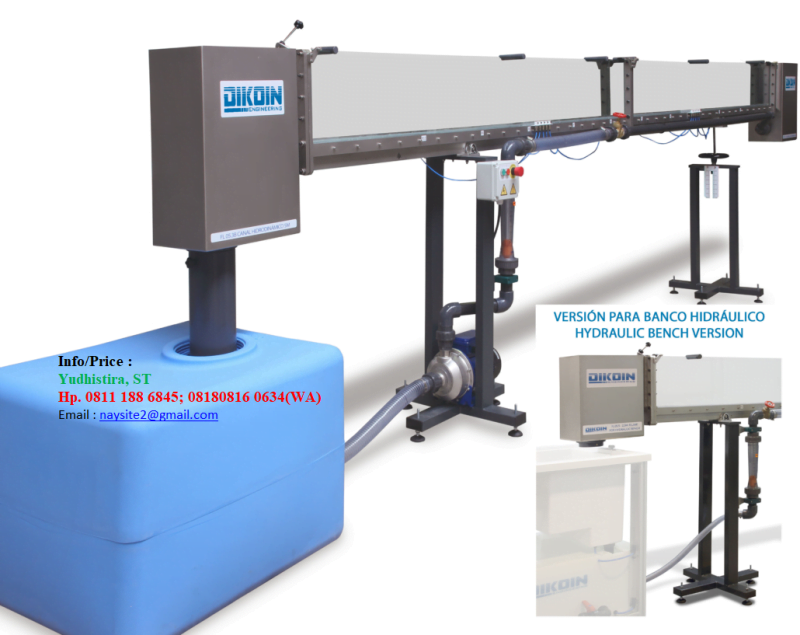

FLUME FOR HYDRAULIC BENCH

Brand/Supplied From : Dikoin – Spanyol

Kode Barang : FL 05.4

General Descriptions:

HIGHLIGHTS
    • Choice of negative and positive channel slope.
    • Various reading elements, gauge, limnimeter, Pitot tube, etc.
    • Wide variety of accessories for the study of multiple phenomena.
    • The length of this model offers the advantage, over shorter channels, of a good view of the uniform flow.
    • It includes a self-regulating valve to provide an appropriate flow rate at each moment.
    • The available flowmeter allows to know the flow rate of work at any time.

Among the different experiences to be realized are the following:

  • Study of the flow through open channels, measuring variables such as:
    • Water height.
    • Velocity at different points in a cross section..
  • Study of the uniform flow, gradually varying flow and behavior of the surface profiles.
  • Study and use of thin wall dumps for flow measurement.
    • Rectangular landfill without lateral contraction.
  • Use and study of thick wall dumps for flow measurement.
    • Rectangular landfill.
    • Triangular landfill.
  • Study and use of Venturi channel.
  • Analysis and study of flow under gates.
    • Vertical gate.
    • Radial gate.
  • Study of hydraulic stress.
  • Flow analysis on reservoir springs.

*Some practices may require optional accessories.

Technical Data :

Manometers:

HD.Z.01 Water column multi-manometer for reading the pressure ports at the bottom of the channel.

Section of work:

  • Section of work (high/wide): 250 / 80 mm
  • Length: 5.000 mm

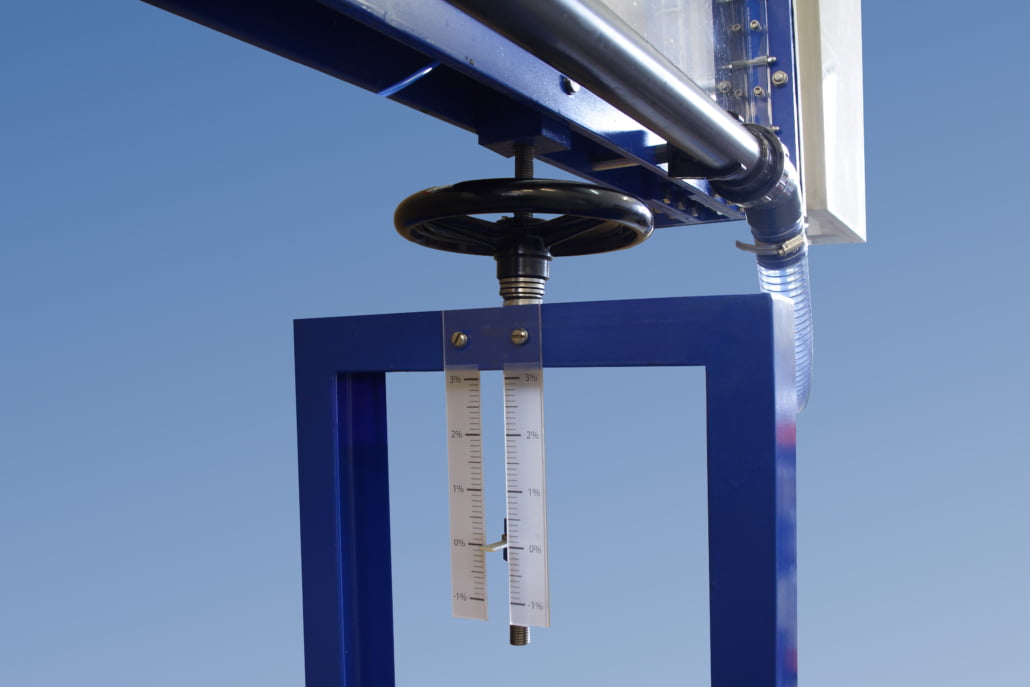

Slope:

Adjustable -1%+3% of its length

Flowmeter:

Scale 1000-10000 l/h

Material:

  • Channel: Stainless steel
  • Channel walls: Transparent methacrylate 15mm thick
  • Deposits: Polypropylene

Included accessories:

  • HD.Z.01 multimanometer 4 tubes.
  • HD.Z.05 Pitot tube + Limnimeter.
  • HD.Z.10 Thin wall without shrinkage.
  • HD.Z.11 Vertical gate.
  • HD.Z.12 Radial gate.



Info/Price :

Yudhistira, ST

Hp. 0811 188 6845; 08180816 0634(WA)

Email : naysite2@gmail.com;
