Alat Baca Digital dan Proses untuk mesin uji tekan beton merk Controls

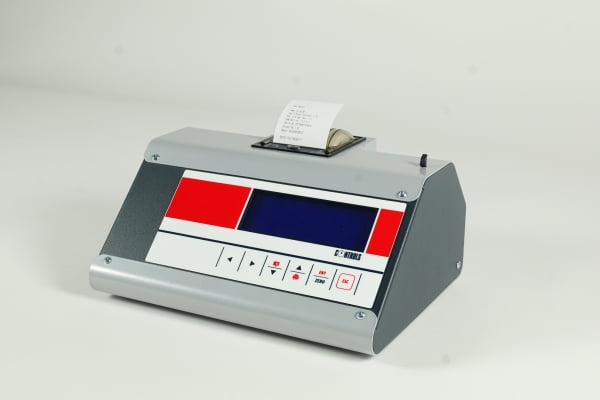

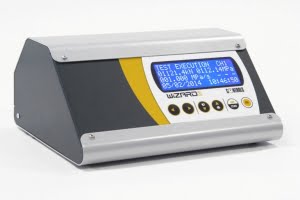

Digital readout unit WIZARD 2

Brand : Controls – Italia

Model : 50-Q60A02

Main Features :

• Digital readout unit with wide high-contrast  display 4×20 characters and 6 keys membrane keyboard;
• real time display of load and stress and applied load rate by symbols for easy adjustment;
• multi-coefficient calibration allowing Class 1 from 1 % of full scale;
• can be connected to any make of hydraulic operated testing frame;
• LAN port for PC connection and data transmission during test execution;
• possibility of data storage on removable USB pen drive.

Descriptions :

Very often may be convenient to update an old compression tester, replacing for example the old pressure gauge, with a modern and much more accurate load measuring system as our WIZARD 2 readout unit. This application requires a suitable pressure transducer and connecting cable.

• Two 16 bit analogic channels for load sensors
• Wide alphanumeric display 4×20 characters and 6 keys membrane keyboard
• Sampling rate 50 Hz
• Large storing capacity on USB pen drive of test data downloadable to PC
• Ethernet port for communication with PC
• Integrated printer as optional. See accessories

• Real time display of load and stress and applied load rate by symbols for easy adjustment.
• LAN connection to PC for transmission, in real time, during loading, of load and time values.
• Memory management with display of tests stored in USB pen, download of data to internal printer or PC.
• Multi-coefficient calibration procedure (using a suitable load cell and readout unit).
• Compatible with SW Terminal software allowing real time data processing.
• 3 measure units: Lbf / Ton / kN.
• Easy firmware update through Ethernet port.

Ordering Info :

50-Q60A02
WIZARD 2 digital readout unit for concrete and/or cement testers. Support for lateral fitting provided as optional.    110-240V, 50-60Hz, 1ph.

Aceessories :

50-Q60A02/ARM
Arm for lateral-wall mounting of WIZARD 2 digital readout unit

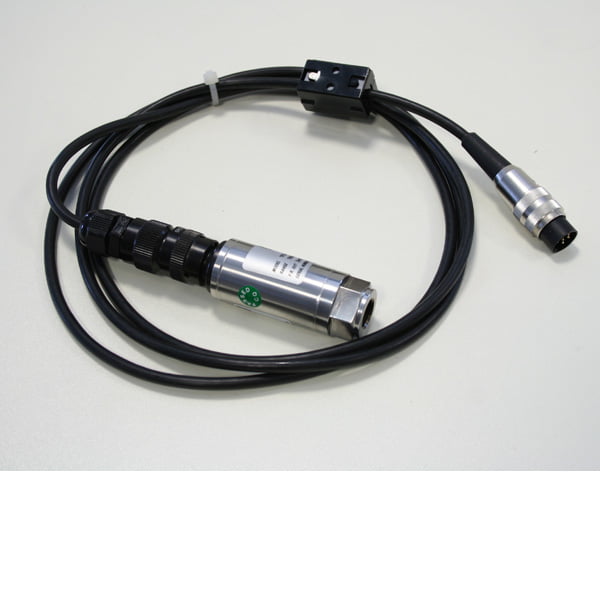

Accessories (Pressure Transducers) :

Pressure Transducers Specifications :

• Accuracy: ±0.5%
• Resolution: infinite
• Operating temperature range: -40 to + 100°C
• Sensitivity: 2mV/V applied (nominal)
• Full scale output: 20 mV nominal
• Cable: 4 core PVC insulated, 1 m length
• Connection thread: ¼ BSP
• Weight approx.: 150 g

Standard models

82-P0050
Pressure transducer 0-50 bar range

82-P0100
Pressure transducer 0-100 bar range

82-P0200
Pressure transducer 0-200 bar range

82-P0350
Pressure transducer 0-350 bar range

82-P0500
Pressure transducer 0-500 bar range

82-P0700
Pressure transducer 0-700 bar range

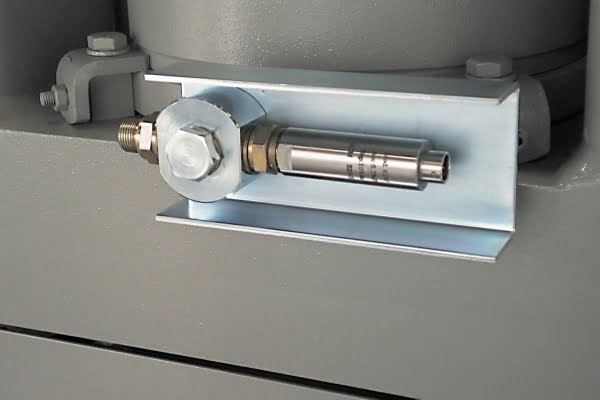

50-Q50/PT
Pressure transducer 0-700 bar range complete with U-shaped metal protection.

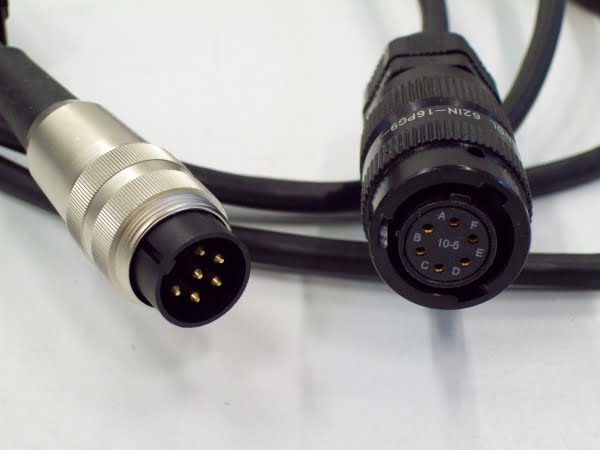

82-P0349/ELT
Connecting cable for pressure transducer. Suitable for Smart-Line, Sercomp, MCC, Advantest control consoles and Compact-Line compression machines.

Price : Call For Info
