Alat Uji Pullout – Kuat rekat beton 58-C0178

Pullout test apparatus

Brand : Controls – Italia

Kode Barang : 58-C0178

Standard : ASTM C900, UNI 9536

ASTM C900 : 1.1 This test method covers determination of the pullout strength of hardened concrete by measuring the force required to pull an embedded metal insert and the attached concrete fragment from a concrete test specimen or structure. The insert is either cast into the fresh concrete or installed in hardened concrete.

Description :

Used for determining the pullout strength of hardened concrete in test specimens or structures by measuring the force required to pull an embedded metal insert and the attached concrete fragment from a concrete mass.
The pullout test apparatus 58-C0178 is used for pre-embedded inserts in fresh concrete mass. It comprises a hydraulic jack 100 kN cap., a precision measuring Bourdon gauge 150 mm dia., bearing ring and 10 pullout inserts, all contained in a carrying case.
Case dimensions: 740x300x255 mm
Weight approx.: 21 kg

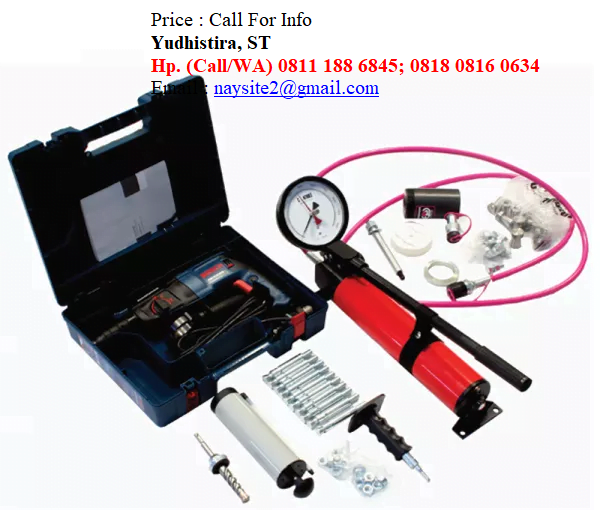

For embedded inserts after the concrete hardening, it is available the kit model 58-C0178/3, that includes a professional electrical drill with suitable power, SDS mandrel, 18mm drill bit for concrete, pack of 10 expanding plugs dia. 18mm x  80mm and manual air pump for dust cleaning. (This apparatus does not match all the requirements of the Standard UNI 10157, EN 12504-3).
Case dimensions: 520x430x390 mm
Weight approx.: 11 kg

Ordering Info :

58-C0178 Pullout  test apparatus, 100 kN cap. for pre-embedded inserts

Accessories :

58-C0178/2 Pullout inserts, 30 mm dia. Pack of 50 pieces

58-C0178/3 Set of accessories for 58-C0178 pullout apparatus adopting test inserts suitable for installation after concrete hardening

Price : Call For Info
